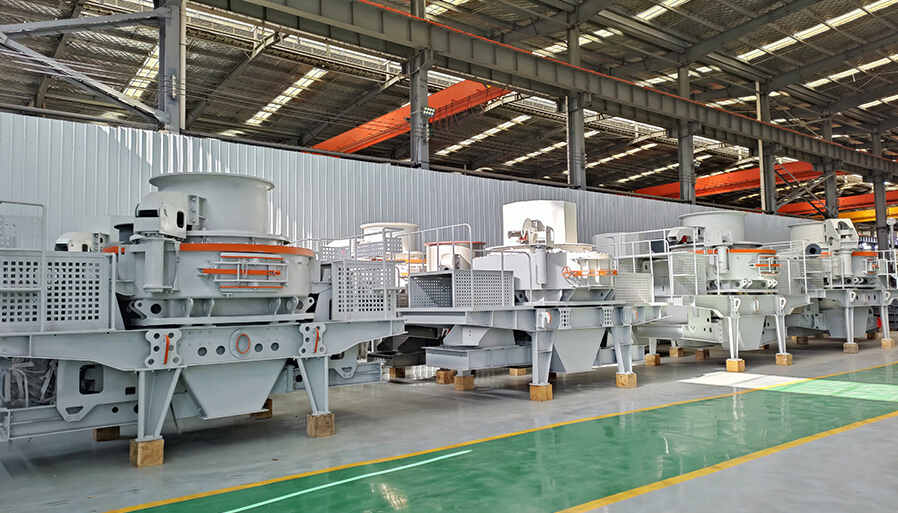

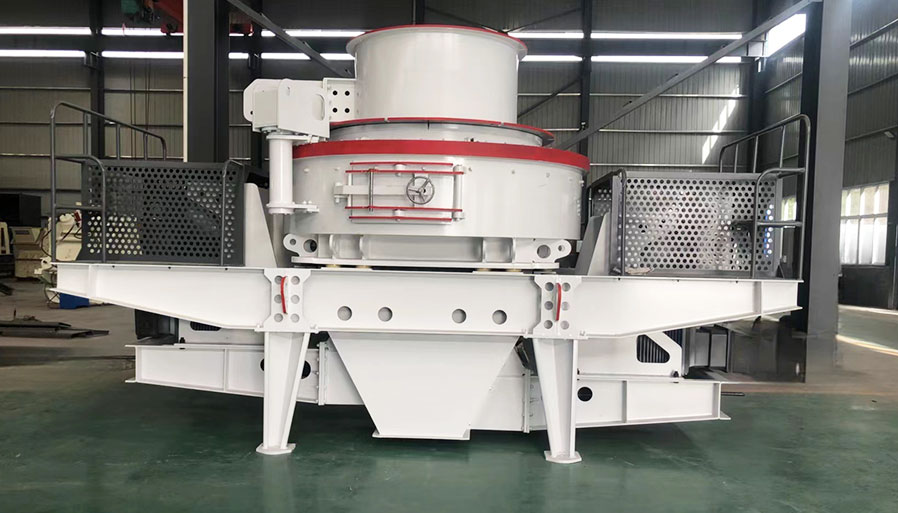

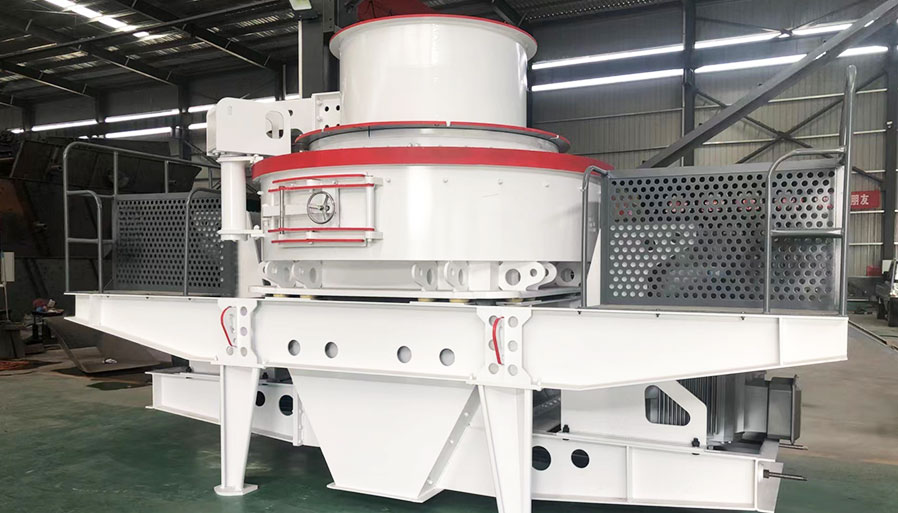

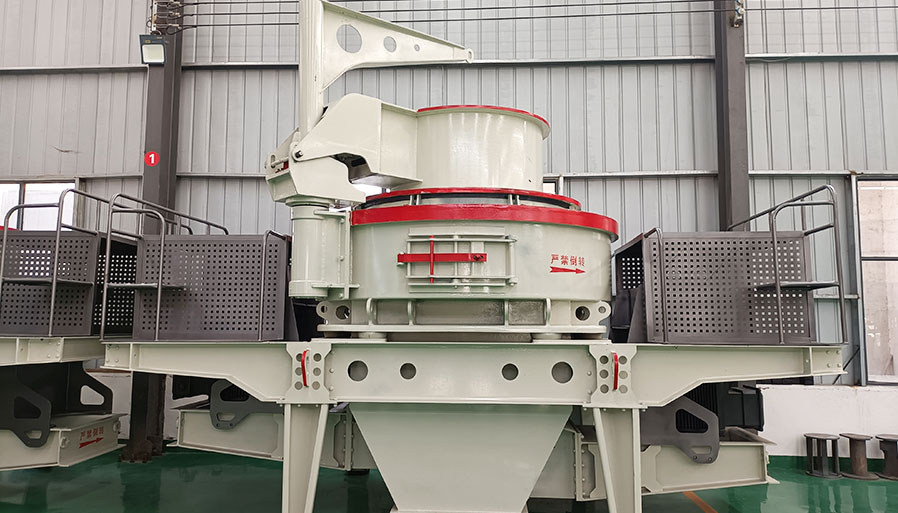

5X series vertical shaft impact crusher-Shengbang International Technology (henan) Co., Ltd.

Description

5X series new sand making machine (centrifugal impact crusher) can not only break stone into stone but also break iron, it can break and reshape stone, and is suitable for medium and fine crushing of various ores and rocks of different hardness, such as bauxite, quartz sand, oxide, perlite, basalt and other high hardness materials.

Application Field

Mining
Metal minerals
Recycled aggregates
Construction
Sand making ects

Technical Parameters

Model			5X7615	5X8522	5X9532	5X1145
Capacity (t/h)	Central Feeding with Circular Cascade Feeding		150~280	240~380	350~540	500~640
	Fully Central Feeding		70~140	120~200	180~280	250~360
Max.Feeding Size (mm)	Soft Material		<35	<40	<45	<50
	Hard Material		<30	<35	<40	<45
Rotation Speed(r/min)			1700~1900	1500~1700	1300~1510	1100~1310
Double Motor Power(kw)			150	220	320	440
Overall Dimension LxWxH(mm)			4100×2300×2300	4140×2500×2700	4560×2600×2900	5100×2790×3320
Power Supply			380V,50Hz
Double Oil Pumps Motor's Power (KW)			2×0.31
Thin Oil Lubrication Station		Safety Assurance	Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure; air coolingsystem /water cooling system available;preheating-start engine adopted.
Power of Oil Tank Heater (KW)			2

Product Advantages

01
The optimized design of the polishing head and its alloy shape improves its metal utilization.
02
The material throughput and crushing rate of the 5X sand making machine are significantly improved, and the working efficiency is increased by 30%-60%.
03
The wear cost of wearing parts is reduced by more than 40%.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
