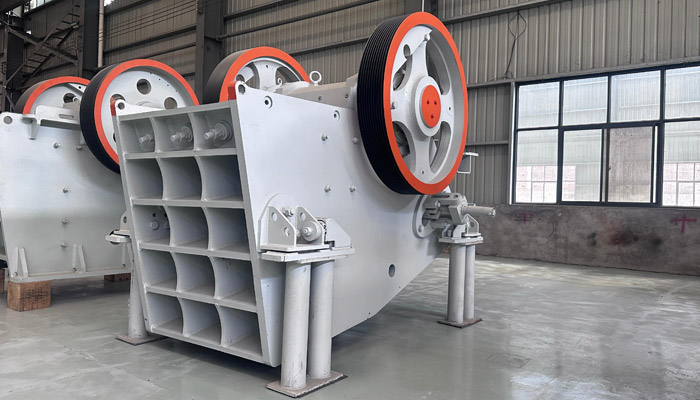

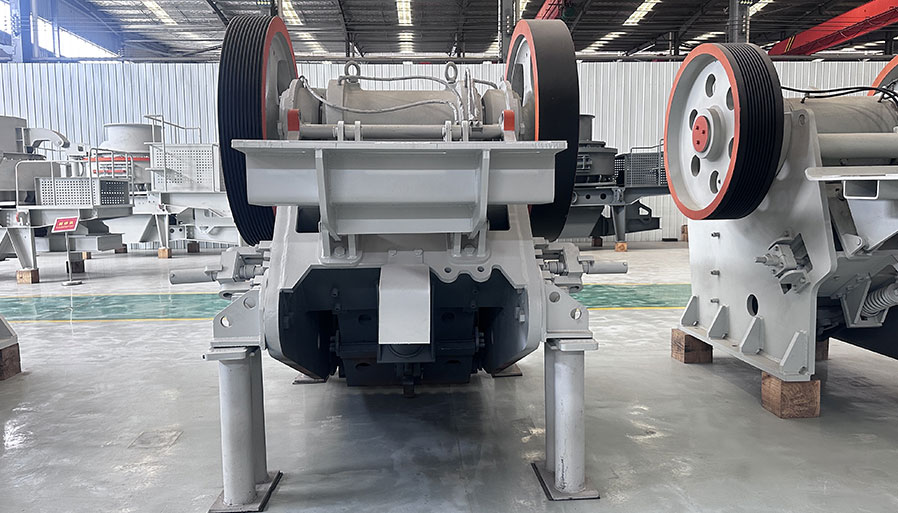

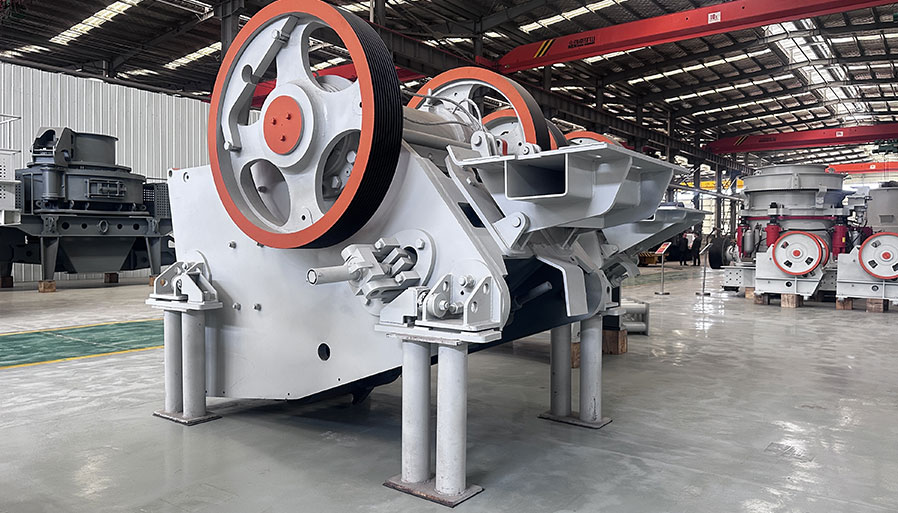

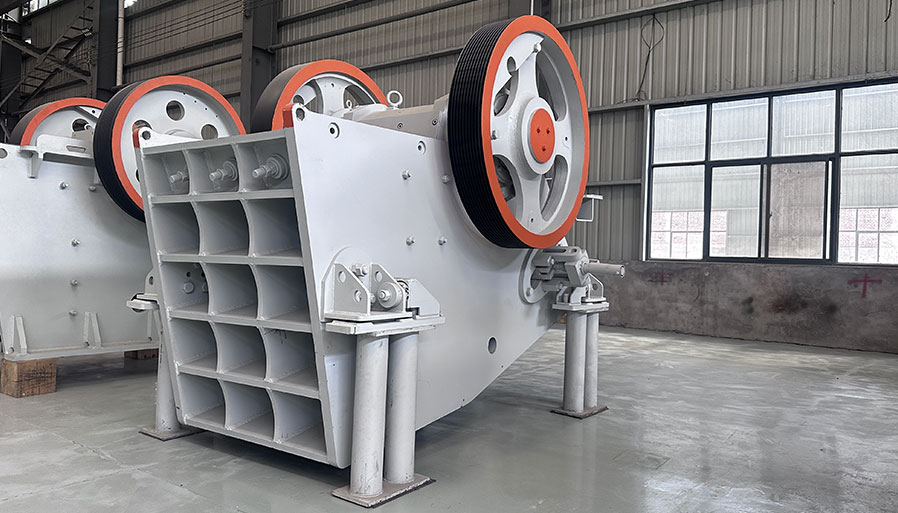

6CX Series European Type Jaw Crusher-Shengbang International Technology (henan) Co., Ltd.

Brief introduction

6CX series Jaw Crusher has adopted world’ s most advanced crushing technology and research achievement. lt is the new crushers with the world’ s advanced level.which are success fully developed by using finite element analysis method based on years’ experience on jaw crusher design and manufacture.Compared with traditional jaw crusher, 6CX series Jaw Crushers pay more attention to the details of design and manufacture. Adopt high-strength material first-class manufacturing process, and the 6CX series Jaw Crushers provide the advantages of excellent strength structure reliable equipment, higher crushing ratio, larger capacity and lower cost.

Application Field

Mining
Metallic minerals
Recycled Aggregates
Architecture

Technical Specification

Model	6CX80	6CX100	6CX106	6CX110	6CX125	6CX140	6CX145	6CX160
The Feeding Mouth(mm)	800×510	1000×760	1060×700	1100×850	1250×950	1400×1070	1400×1100	1600×1200
Motor Power(kw)	75	110(90)	110	132(160)	160(132)	200(160)	200	250(200)
Speed(rpm)	350	260	280	230	220	220	220	220
Fixed Jaw Length(mm)	1100	1600	1450	1800	2000	2100	2300	2500
Maintenance Maximum Weight(Without The Flywheel Jaw Assembly)	2870	7060	4020	9000	12960	15950	18600	21380
Total Weight(Do Not Include Motor and Accessories)	7520	20100	13500	25060	36700	45300	53800	68600

Model	Model	6CX80	6CX100	6CX106	6CX110	6CX125	6CX140	6CX145	6CX160
Product Size (mm)	Tight Edge Discharge Port (mm)	t/h	t/h	t/h	t/h	t/h	t/h	t/h	t/h
0-30	20
0-35	25
0-45	30
0-60	40	65-85
0-75	50	80-95
0-90	60	95-125
0-105	70	115-150	150-210	155-200	190-250
0-120	80	130-170	170-225	175-230	210-275
0-135	90	150-195	190-245	200-260	235-305
0-150	100	165-215	215-280	220-290	255-330	290-380
0-185	125	210-275	265-345	280-365	310-405	350-455	385-500	400-520
0-225	150	250-325	315-410	335-435	370-480	410-535	455-590	470-610	520-675
0-260	175	290-380	370-480	390-510	425-550	470-610	520-675	540-700	595-775
0-300	200		420-545	445-580	480-625	530-690	590-765	610-795	675-880
0-340	225					590-770	655-850	680-885	750-975
0-375	250					650-845	725-945	750-975	825-1070
0-410	275							820-1070	900-1170
0-450	300

PRODUCT ADVANTAGES：

01
The crusher possesses V structure chamber, optimum configuration crushing chamber and trajectory parameters of moving jaw. The super-large crushing stroke maximizes the feeding size, capacity and crushing ratio.
02
Replacing the original rigid foot connection with elastic limit block and rubber damping device which effectively absorbs peak load of vibration, so as to reduce the impact force between crusher and foundation and prolong the equipment service life.
03
Replacing traditional plates with wedges, the discharge opening can be adjusted more simply.
04
Integrative motor cabinet reduces mounting space and makes the power output more stable. Oversized tapered roller bearing with uniform internal and external bearing models reduces the number of spare parts.

PRODUCT CASES

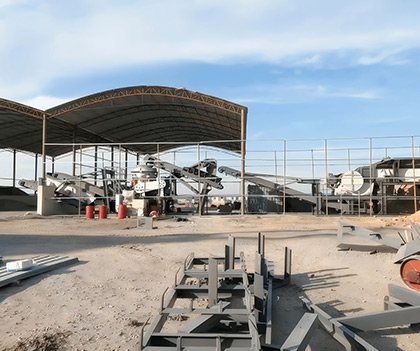

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

350 TPH Limestone Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

Related Products

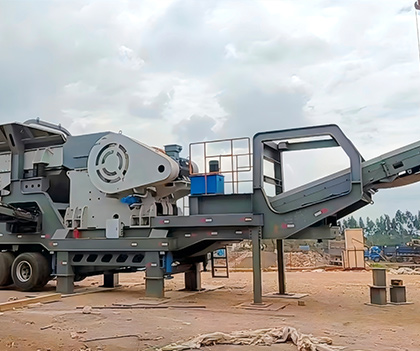

Wheel Series Mobile Crusher Plant

Mobile Crusher Station is mainly used in metallurgy, chemistry, building materials, hydro power etc., often be moved material processing in particular used in freeway, railway, hydro power engineering etc.

PE/PEX Series Jaw Crusher

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA.

6CX Series European Type Jaw Crusher

6CX series Jaw Crusher has adopted world' s most advanced crushing technology and research achievement. lt is the new crushers with the world' s advanced level.

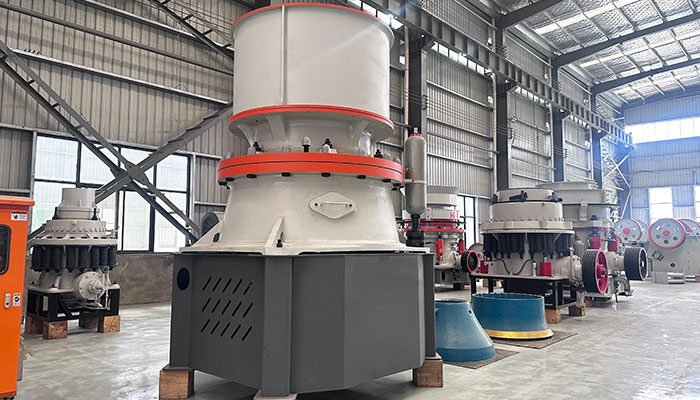

Single Cylinder Hydraulic Cone Crusher
