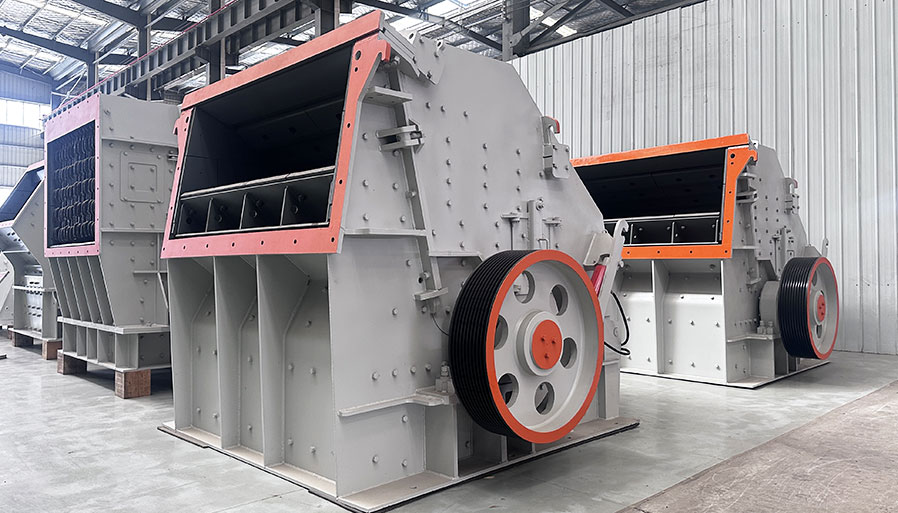

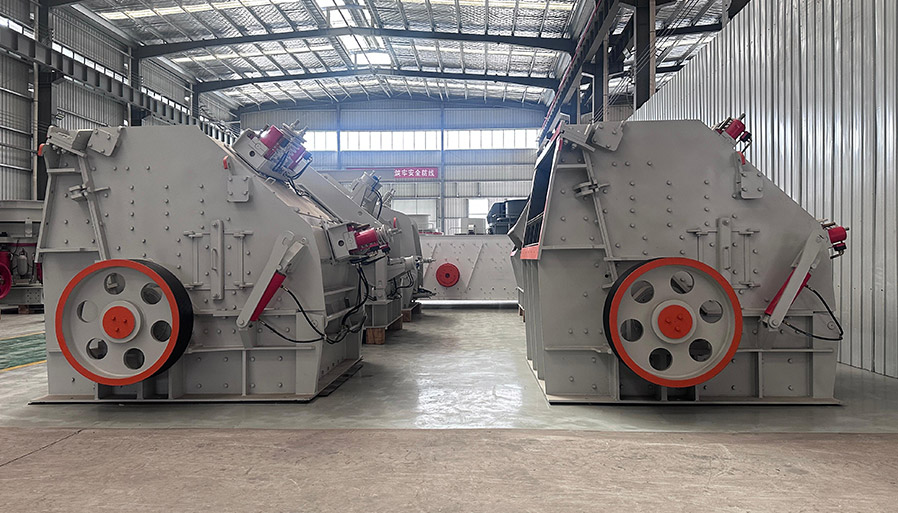

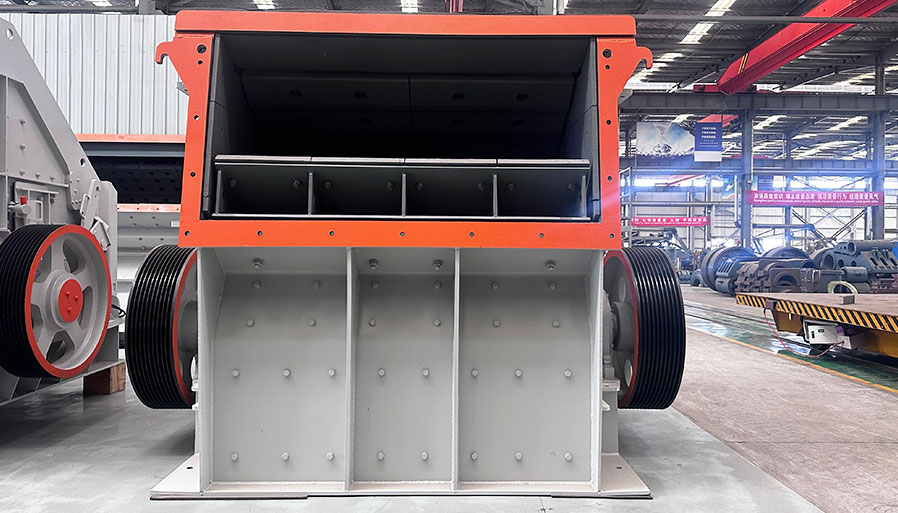

CI6X Series Impact Crusher

Description

Application Field

Technical Parameters

Product Advantages

• 01

  Excellent processing particle shape:

  The involute cavity design makes the material hit the impact plate vertically, and the material returns to the inlet direction in the plate hammer action area, increasing the number of hits, significantly improving the crushing efficiency, and better discharging particle shape.

• 02

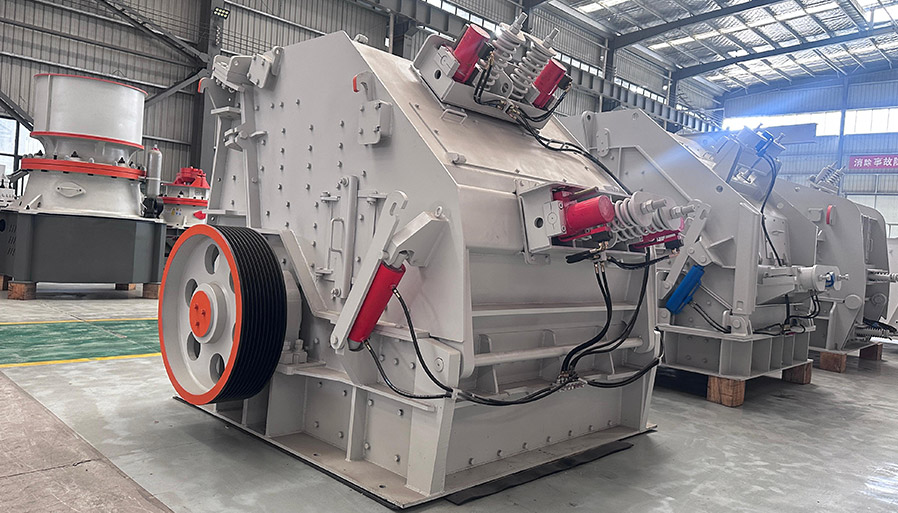

  Multifunctional full hydraulic system:

  Fully hydraulic adjustment of discharge particle size, fully hydraulic open top replacement of wearing parts.

• 03

  Simple maintenance method:

  The liner is fixed with high-strength bolts and can be replaced directly from the outside; the bearing seat is precisely positioned and installed to reduce the difficulty of positioning the bearing seat during maintenance; the overall plate hammer design is firm and reliable, and the plate hammer is more convenient and quick to disassemble.

• 04

  Extended service life:

  The mating surfaces of the impact plate and the impact frame are finely processed and firmly connected. The thickened liner is used, and the bolts rotate from the outside to the inside to ensure that the side guard is fully utilized and the service life is greatly extended.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

Read More Chat Now

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

Read More Chat Now

150 TPH Construction Waste Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

Read More Chat Now
