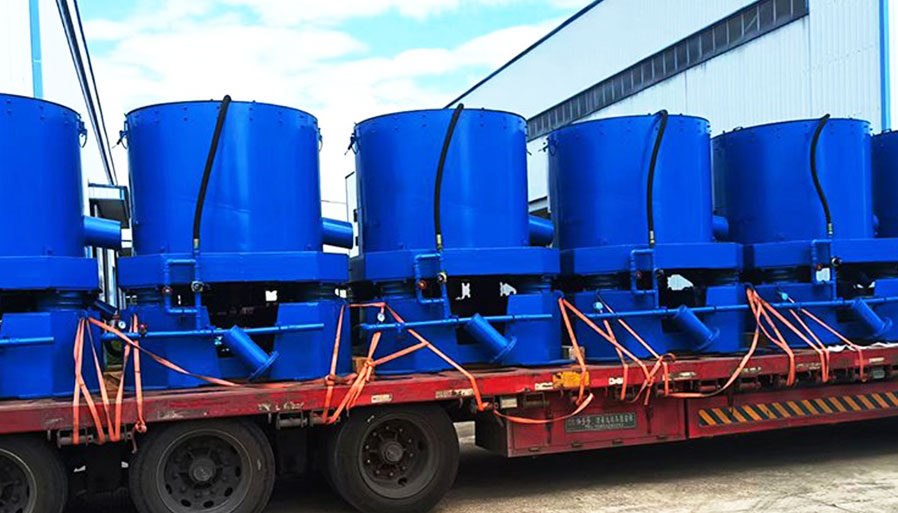

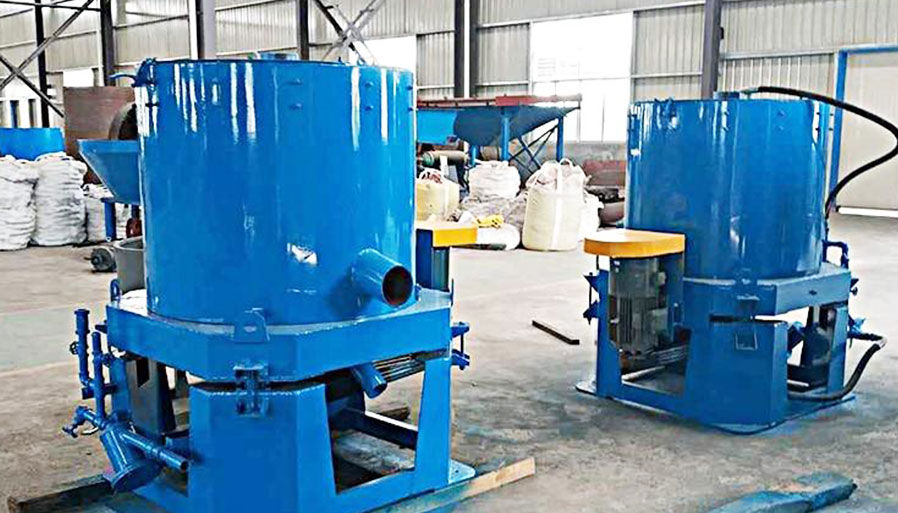

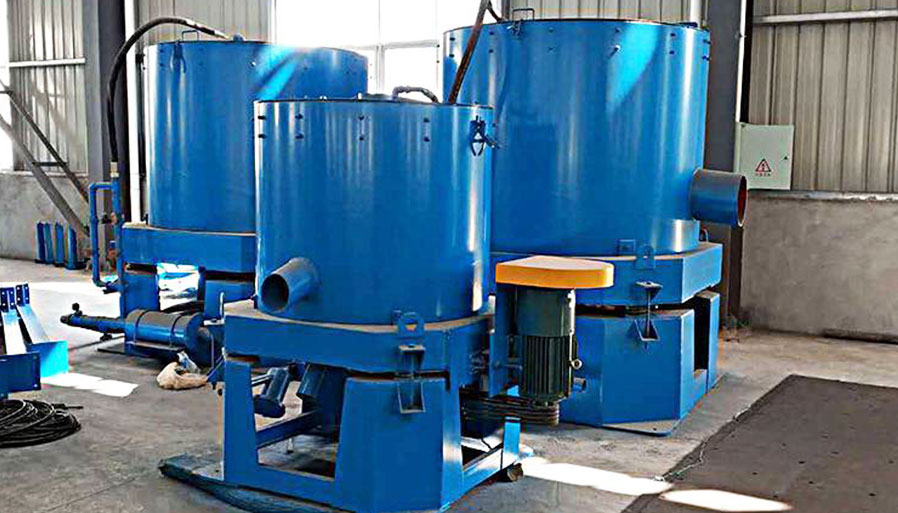

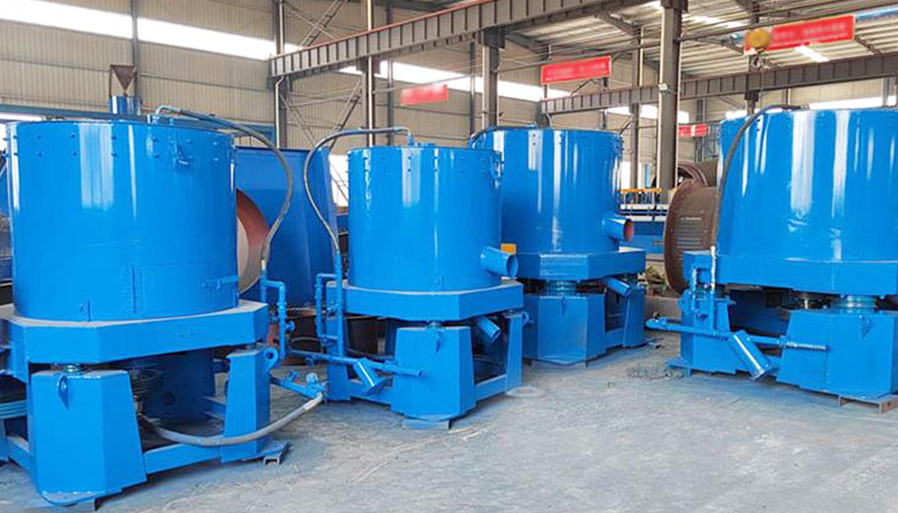

Gold centrifugal machine is a gravity separation equipment, which uses the principle of centrifuge to enhance the gravity of the ore particles and separate them according to the particle density. It is suitable for the recovery of single gold from placer gold, vein gold and polymetallic ores, replacing mercury plate operation, and is an ideal choice for dry land or river gold panning and rock gold equipment.
The ore dressing test has proved that the equipment has excellent separation effect on single gold in vein gold ores. It can be used not only for placer gold mining, but also for hard rock mining to recover natural gold and replace amalgam. It is also used to recover gold from old tailings.
It is widely used to recover gold, tungsten, lead, manganese, iron, etc.
|
Model |
60 |
80 |
100 |
120 |
|
Capacity (t/h) |
30-45 |
50-65 |
70-85 |
100-120 |
|
Feeding Size (mm) |
0-6 |
0-6 |
0-6 |
0-6 |
|
Feed Concentration (%) |
0-50 |
0-50 |
0-50 |
0-50 |
|
Recoil Water Volume (t/h) |
25-30 |
45-55 |
60-70 |
70-80 |
|
Concentrate Output (kg/time) |
30-40 |
60-70 |
70-80 |
110-120 |
|
Motor (kw) |
5.5 |
11 |
18.5 |
22 |
|
Cone Rotation Speed (r/min) |
460 |
400 |
360 |
360 |
|
Water Pressure (Mpa) |
0.025 |
0.035 |
0.04 |
0.4 |
|
Machine Oversize (mm) |
1970x1670x1750 |
2300x1800x2200 |
2500x2000x2400 |
2680x2200x2600 |
It has a large processing capacity and can process a large amount of slurry quickly and effectively. Its continuous feeding and discharging design makes the operation efficient, significantly improves production efficiency and reduces production costs.
It only needs simple equipment monitoring and daily maintenance. This reduces the difficulty of operation and personnel costs, while improving the safety and stability of production.
It has low power and can save energy. In daily operation, this significantly reduces production costs. In addition, the daily maintenance of the equipment is also low, further reducing operating costs.
It occupies a small area and is easy to integrate into the existing mineral processing line.
It is not only suitable for the recovery of gold, but also suitable for the separation of other mineral particles with a larger specific gravity.
No chemical agents need to be added during the work process, and it will not cause pollution to the soil and water sources.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
