High Efficiency Sand Maker-Shengbang International Technology (henan) Co., Ltd.

Description

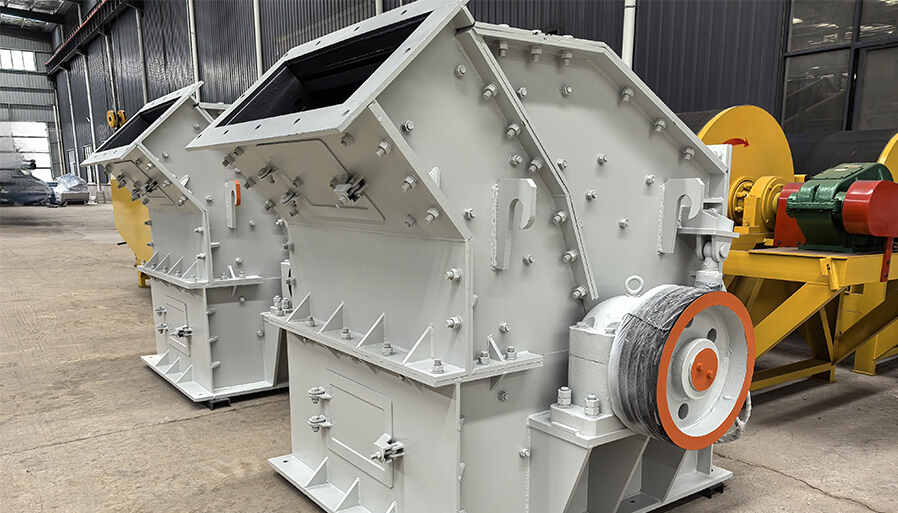

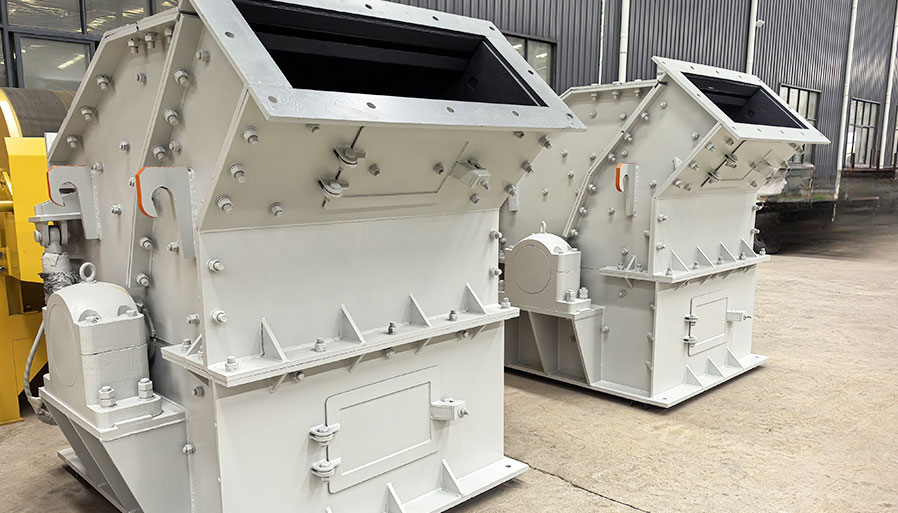

PXJ high efficiency fine crusher is in absorbing foreign advanced technology, combined with the specific working conditions related industries developed for the latest generation of high efficiency fine crusher. Fora variety of medium hardness of solid materials, size reduction, in the cement industry, fine limestone, gypsum, clinker, mixed materials, etc. Calcium phosphate can also be small and fragmented,dolomite, perlite ore,etc.

Application Field

It is widely used in fine crushing of various minerals such as granite, basalt, limestone, pebbles, etc.

Technical Parameters

Model	Feeding opening (mm)	Feeding size (mm)	Output size (mm)	Discharge grate seam adjustment width (mm)	Capacity (t/h)	Motor power (kw)
PXJΦ800×400	400×185	≦120	≦5	5-20	20-40	22
PXJΦ800×600	500×250	≦180	≦5	5-20	35-55	45
PXJΦ800×800	550×330	≦180	≦5	5-20	35-65	55
PXJΦ1010×1010	1000×350	≦180	≦5	5-20	45-75	75
PXJΦ1200×1000	1200×400	≦180	≦5	5-20	80-100	90
PXJΦ1200×1200	1200×450	≦180	≦5	5-20	90-120	110
PXJΦ1400×1400	1500×500	≦190	≦5	5-20	100-150	160
PXJΦ1600×1600	1600×550	≦190	≦5	5-20	170-250	250
PXJΦ1800×1800	1800×800	≦190	≦5	5-20	250-310	280

Product Advantages

01

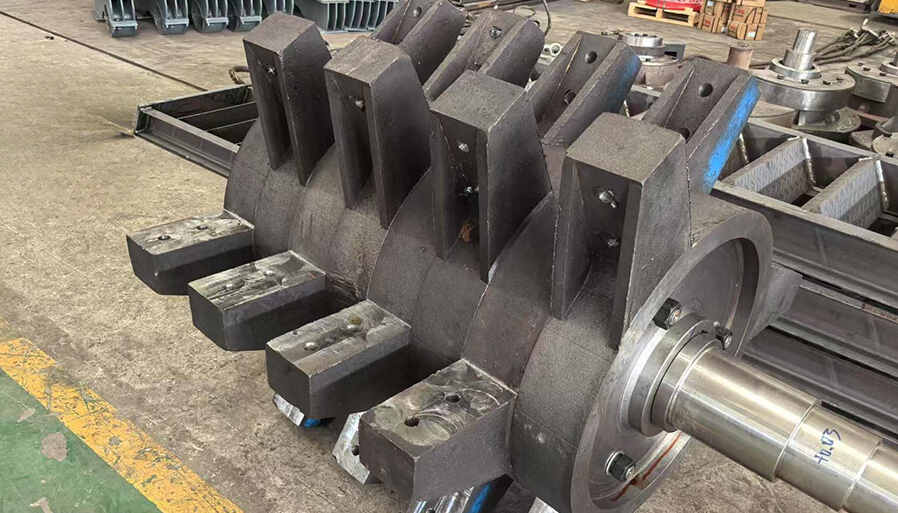

Large production capacity and long hammer head service life.
02
Simplified process, simple structure and convenient maintenance.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

Related Products

Wheel Series Mobile Crusher Plant

Mobile Crusher Station is mainly used in metallurgy, chemistry, building materials, hydro power etc., often be moved material processing in particular used in freeway, railway, hydro power engineering etc.

PE/PEX Series Jaw Crusher

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA.

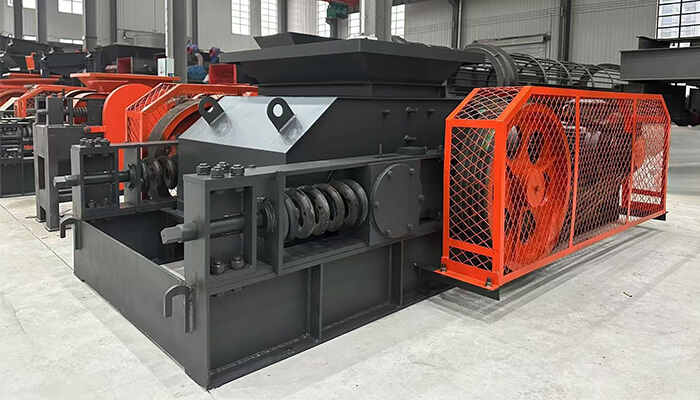

Roller Crusher

The Roller Crusher is a kind of crusher that uses two sets of rollers to crush materials. It is suitable for medium and fine crushing of materials with compressive strength not more than 160MPa, such as ore, rock, coke, coal, clinker, ceramic raw materials, slag, refractory materials, and chemical materials.

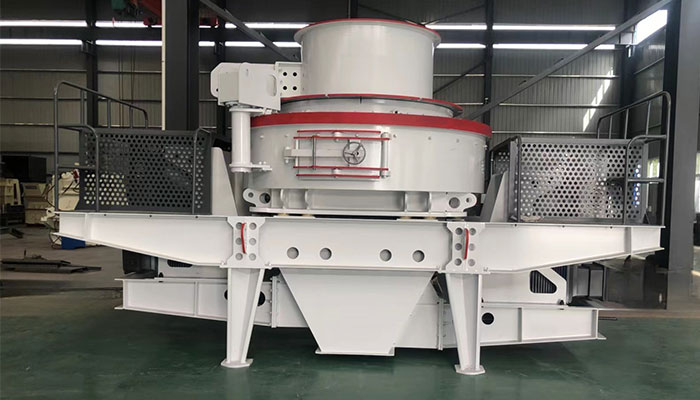

5X series vertical shaft impact crusher
