MBP Series Mobile Crushing Plant

MBP series modular mobile crushing plant is a multi-integrated frame structure solution consisting of one or some crushing and screening unit modules. This series of mobile plants are especially suitable for multi-point quarries that need to regularly move equipment between different locations. They have significant advantages such as compact structure design, space-saving, foundation-free installation, and can be quickly relocated and recombined according to construction needs.

Wide range of applications: The mobile crusher equipped with jaw crusher series, cone crusher series, impact crusher series and sand making machine series crushers can be configured according to the material type and product requirements of customers in the process, providing a more flexible process scheme configuration to meet users’ mobile crushing and mobile screening and other requirements.

Foundation-free installation

It adopts intelligent, integrated and modular configuration, no basic installation is required, and it can be put into production quickly.Through the optimization of the process flow, it has excellent rock crushing, aggregate production, and open-pit mining crushing performance.

Rugged construction

The frame is divided into welding type and assembled type. Generally, welding is used for small and medium-sized specifications and assembly is used for large-scale specifications. lt has the characteristics of impact resistance, uniform force and low failure rate.

High degree of automation

The thin oil lubrication system adopts the redundant design of double oil pumps and double filters, which can be lubricated before the equipment is started, with strong adaptability, easy control, and prolongs the service life of parts.

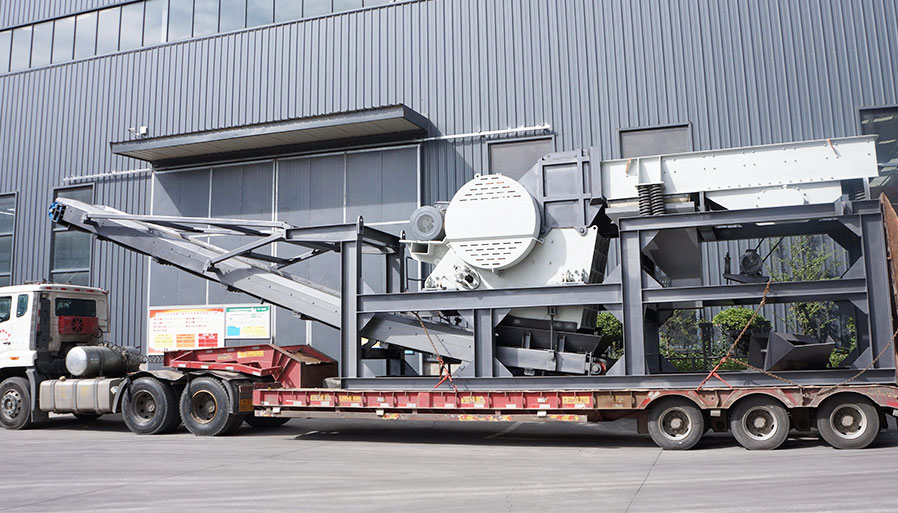

MBP series jaw crusher modular crushing station is an integrated modular crushing and screening station. t is a multi-integrated system solution consisting of one or several crushing and screening unit modules according lo the needs of the project. The jaw crusher module station uses the most optimized frame structure and movable jaw design. We fully consider its wide practicability when designing the jaw crusher, which can crush almost any stone.

According to the different production capacity, the jaw crusher module station is designed with different specifications of feeders, jaw crushers, belt conveyors and modular structural parts, According to the different feeding methods, matching feeding bins are designed to facilitate feeding by excavators or dump trucks. lt can also be equipped with a breaker at the mouth of the machine as required for the treatment of oversized materials, thereby improving the efficiency of jaw crushing. There is a vibrating feeder with one or two-stage bars under the raw material silo, which can pre-screen and remove impurities from the raw materials. Modular design of walkways, handrails.ladders, equipment bases and platforms is convenient for equipment installation, observation, inspection and maintenance.

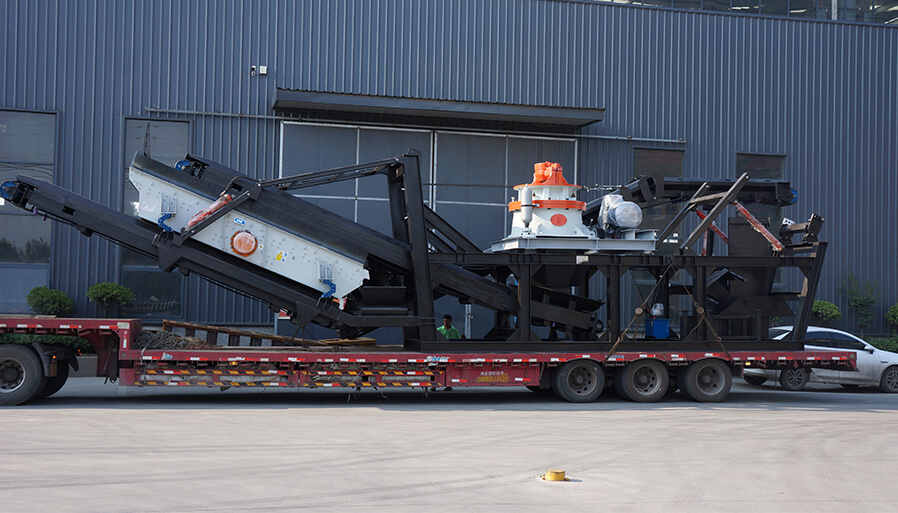

The MBP series cone crusher modular crushing station adopts hydraulic high-speed cone crusher main machine, which is especially suitable for multi-point quarries that need to move equipment between different locations on a regular basis, which can be easily towed by standard trucks. According to the different models of cone crushers, the modular equipment base structure is standardized and designed. The modular station has a beautiful and simple structure, and all independent work pieces are fastened and connected by bolts, which is convenient for installation, disassembly and transportation, Standardized intermediate silo and feeding hopper modular units can also be configured according to the system design process requirements. The modular station is designed with ladders, handrails and surrounding walkways to facilitate inspection and maintenance of any part of the cone crusher modular station.

MBP series impact crusher module crushing station adopts impact material crushing technology, which has the characteristics of large output,high crushing efficiency, low energy consumption, low wear, high reliability, and excellent finished product particle shape. Moreover device between multi-site quarries. The modular station has a beautiful and simple structure, and all independent work pieces can be disassembled tor easy assembly, disassembly and transportation. The impact crushing module station can also be equipped with a standard self-lining anti-wear inlet and outlet hopper according to the customer's choice, The impact crusher module station is designed with ladders, handrails and surrounding walkways to facilitate the inspection and maintenance of any part of the impact crusher.
