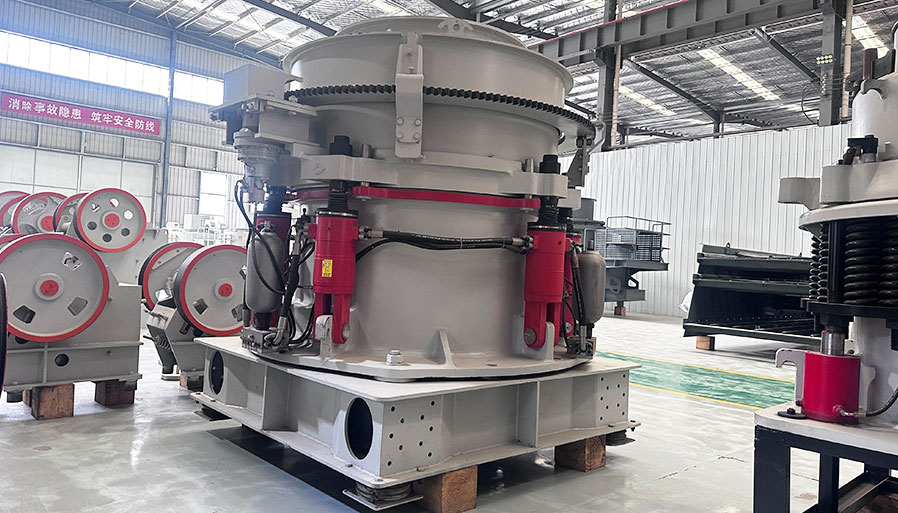

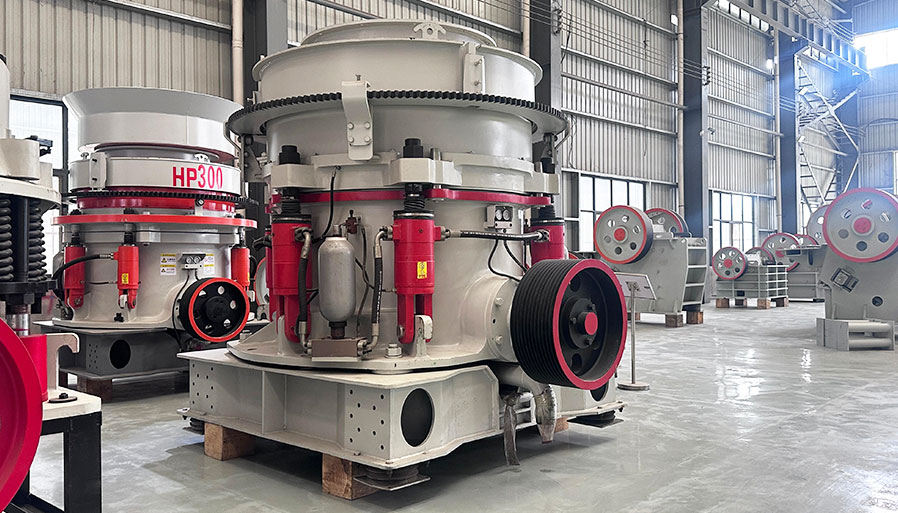

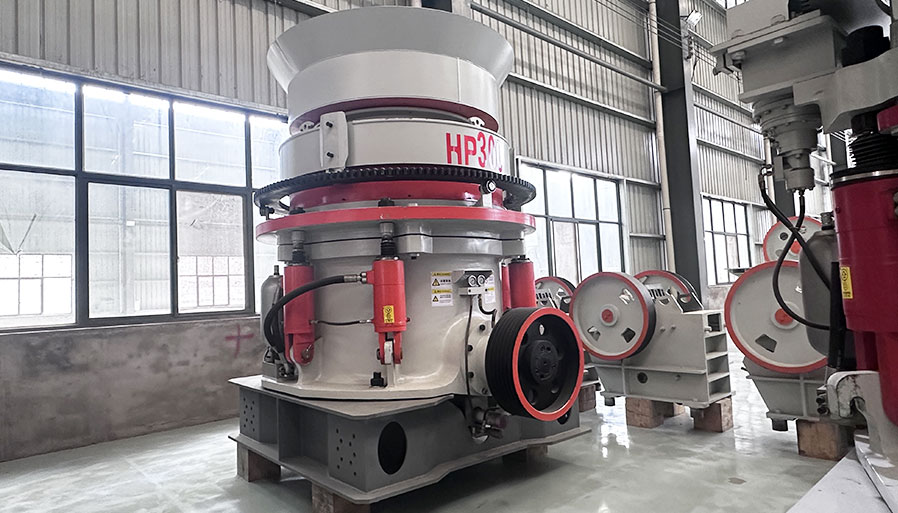

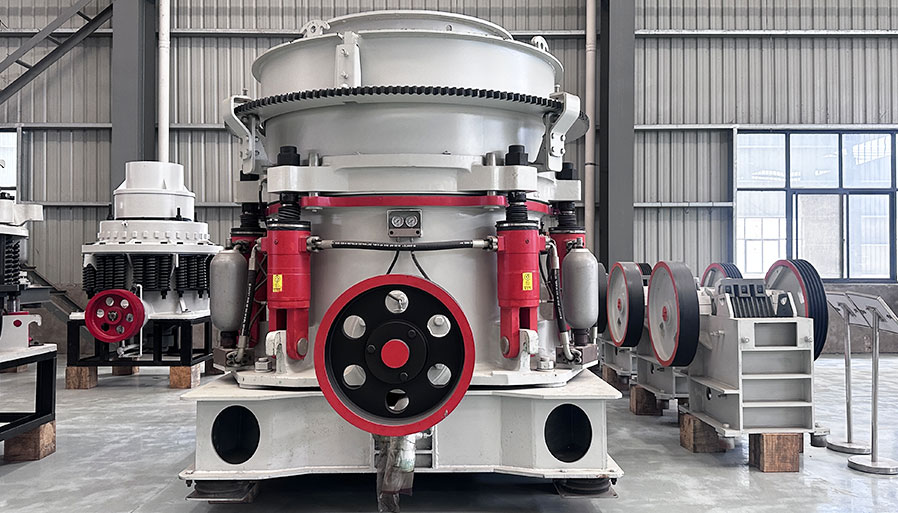

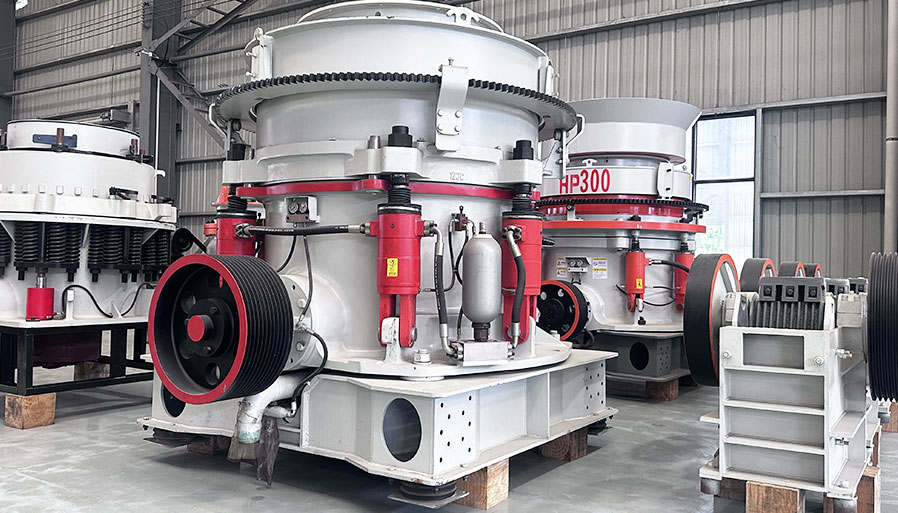

HP hydraulic cone crusher uses the principle that the movable cone of the crusher swings under the action of the eccentric sleeve, so that the material is squeezed and rolled between the crushing wall and the concave surface. Under the action of forces in different directions, the material is crushed according to its own structure and finally forms a stable stone shape. It can crush materials with medium and fine hardness above medium, such as basalt, pebbles, quartz, wollastonite, granite, gold ore, iron ore, etc. It is the preferred model especially in the occasions where the crushing production line has strict requirements on product particle size, high yield rate and high degree of automation.
It is widely used in fields of mining, metallurgy, building material, chemical, ceramic, etc.
| Model | Cavity | Standard Type | Short head Type | Power(kw) | Capacity(t/h) | Weight(t) | ||
| Feeding opening Size(mm) | Min Discharging Opening Size(mm) | Feeding opening Size(mm) | Min Discharging Opening Size(mm) | |||||
| HP200 | BC ( Extra Coarse) | 132-200 | 90-250 | 14 | ||||
| C ( Coarse ) | 185 | 19 | 76 | 10 | ||||
| M (Medium) | 125 | 17 | 54 | 6 | ||||
| F (Fine) | 95 | 13 | 23 | 6 | ||||
| EF (Extra Fine) | 10 | 5 | ||||||
| HP300 | BC ( Extra Coarse) | 230 | 25 | 180-250 | 115-440 | 19.96 | ||
| C ( Coarse ) | 210 | 20 | 75 | 10 | ||||
| M (Medium) | 150 | 15 | 50 | 8 | ||||
| F (Fine) | 105 | 10 | 20 | 6 | ||||
| EF (Extra Fine) | 20 | 6 | ||||||
| HP400 | BC ( Extra Coarse) | 295 | 30 | 280-355 | 140-630 | 28.72 | ||
| C ( Coarse ) | 250 | 25 | 90 | 10 | ||||
| M (Medium) | 195 | 20 | 50 | 8 | ||||
| F (Fine) | 110 | 14 | 40 | 6 | ||||
| EF (Extra Fine) | 30 | 6 | ||||||
| HP500 | BC ( Extra Coarse) | 330 | 30 | 355-450 | 175-790 | 38 | ||
| C ( Coarse ) | 285 | 25 | 90 | 13 | ||||
| M (Medium) | 200 | 20 | 55 | 10 | ||||
| F (Fine) | 133 | 16 | 40 | 8 | ||||
| EF (Extra Fine) | 35 | 6 | ||||||
| HP800 | BC ( Extra Coarse) | 353 | 32 | 550-630 | 260-1200 | 64.1 | ||
| C ( Coarse ) | 297 | 32 | 155 | 13 | ||||
| M (Medium) | 267 | 25 | 92 | 10 | ||||
| F (Fine) | 219 | 16 | 33 | 6 | ||||
| EF (Extra Fine) | ||||||||
Higher production capacity, better final product particle size.
Advanced crushing principle, high performance.
Higher capacity of fine product.
Replace crushing cavity if you need medium, fine and super fine product.
Perfect grain composition and cubic particle product.
Can be installed on the steel structure or concrete foundation in the workshop or open area.
Low operating and maintenance cost.
Short downtime and long working hours.
Easy operating and easy to maintain.
Multi pie protection, avoid accidents and damage caused by human incorrect operation.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
