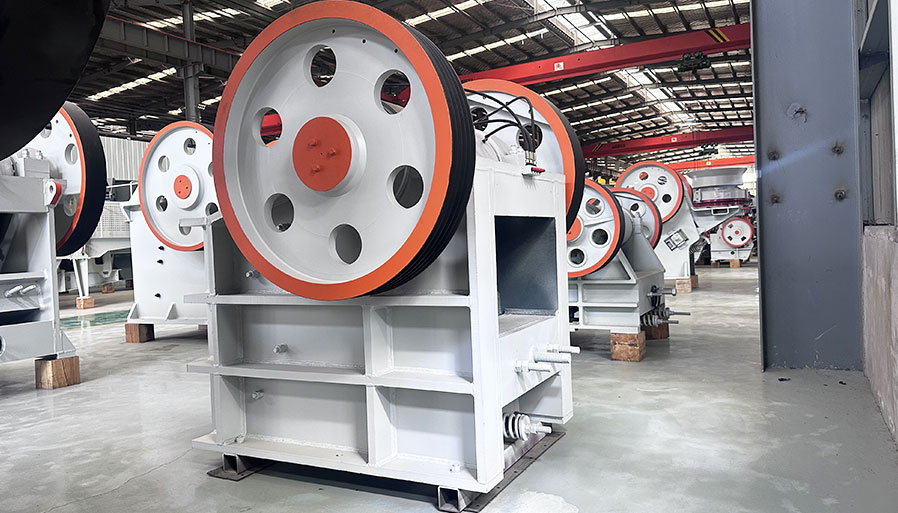

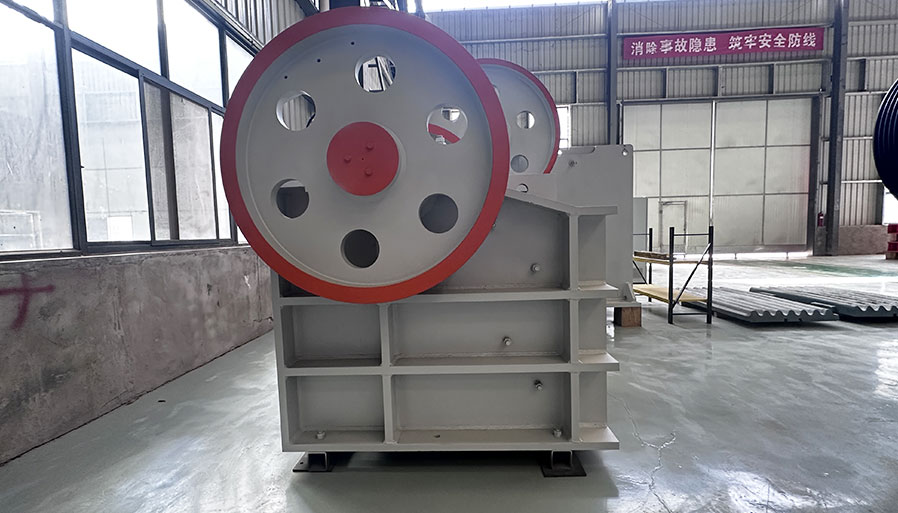

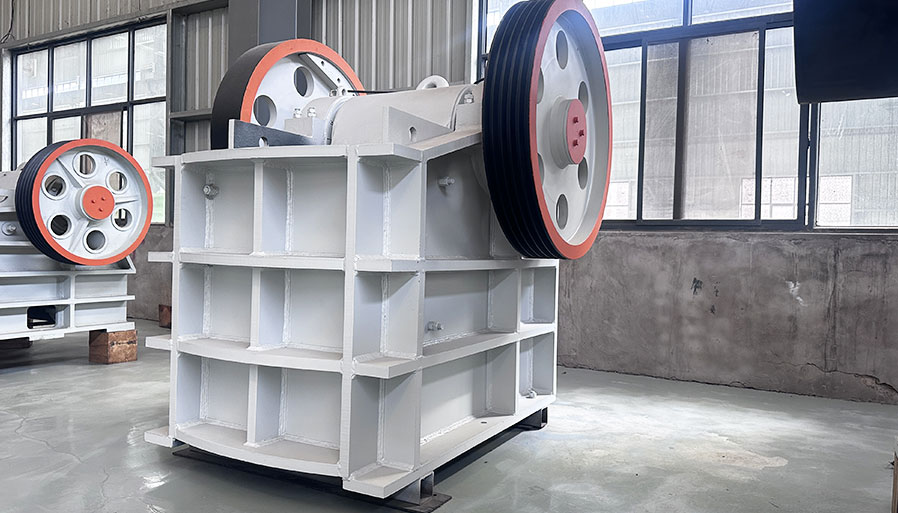

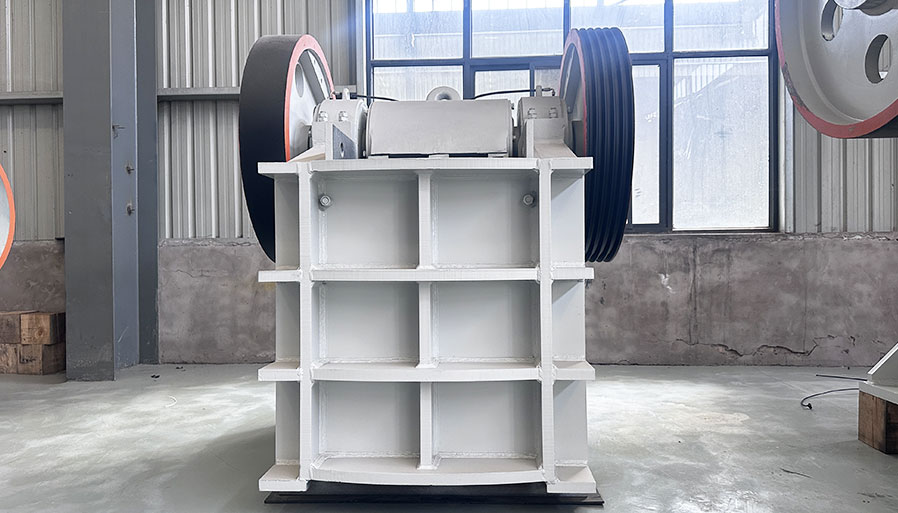

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA.
Jaw Crusher has the features of high crushing ratio, larger capacity, even final product size, simple structure,reliable performance, convenient maintenance, lower operation cost, etc, it is widely used in mining,metallurgy,construction highway,railroad and water conservancy industry, etc.
Mining
Metallic minerals
Recycled Aggregates
architecture
|
Technical Specification |
|||||
|
Model |
Size of Feed Opening(mm) |
Max.Feeding Size(mm) |
Adjustable Size of Discharge Opening (mm) |
Capacity(t/h) |
Power(kw) |
|
PE150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
|
PE150×750 |
150×750 |
125 |
18-48 |
8-25 |
15 |
|
PE250×400 |
250×400 |
210 |
20-60 |
5-20 |
15 |
|
PE400×600 |
400×600 |
340 |
40-100 |
16-65 |
30 |
|
PE500×750 |
500×750 |
425 |
50-100 |
45-100 |
55 |
|
PE600×900 |
600×900 |
500 |
65-160 |
60-160 |
75 |
|
PE750×1060 |
750×1060 |
630 |
80-160 |
110-320 |
110 |
|
PE800×1060 |
800×1060 |
640 |
130-190 |
130-330 |
110 |
|
PE900×1200 |
900×1200 |
750 |
95-210 |
220-450 |
132 |
|
PE1000×1200 |
1000×1200 |
850 |
200-300 |
280-560 |
160 |
|
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
220 |
|
PE1500×1800 |
1500×1800 |
1200 |
210-360 |
520-1100 |
280 |
|
PEX250×750 |
250×750 |
210 |
25-60 |
13-35 |
22 |
|
PEX250×1000 |
250×1000 |
210 |
25-60 |
16-52 |
30 |
|
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-65 |
37 |
|
PEX300×1300 |
300×1300 |
250 |
20-90 |
30-105 |
55 |
High crushing ratio and uniform finished product particle size
Adjusting wedge makes discharging opening have wide adjustable range, reliable and convenient, thus it is capable to met various requirements of customers.
Simple structure,reliable performance,low maintenance and operating cost
Little dust and low noise.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
