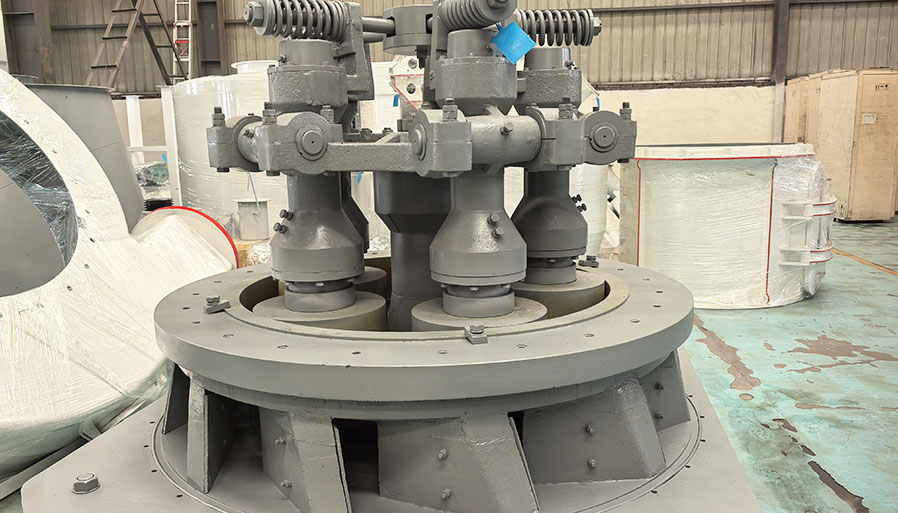

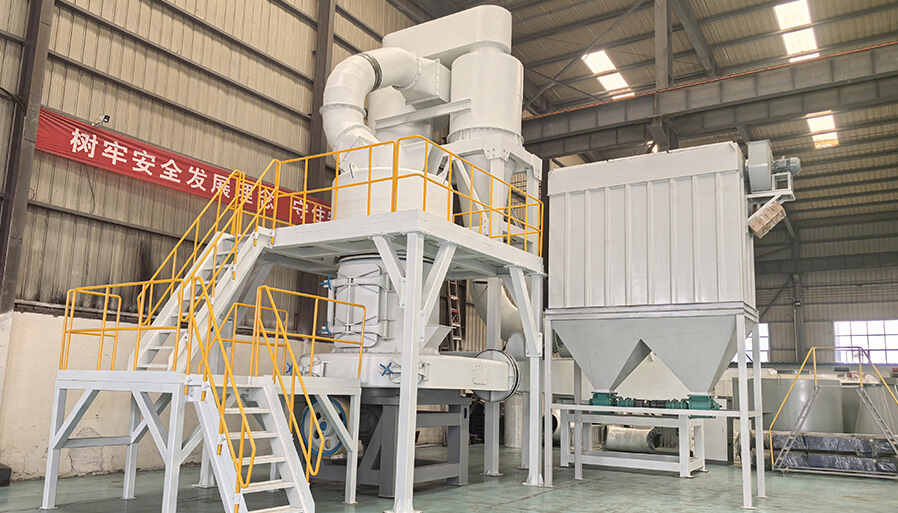

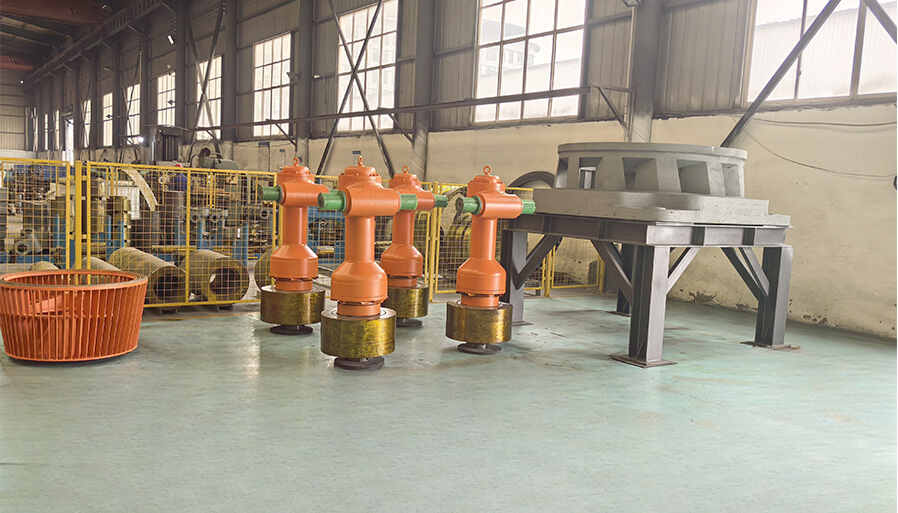

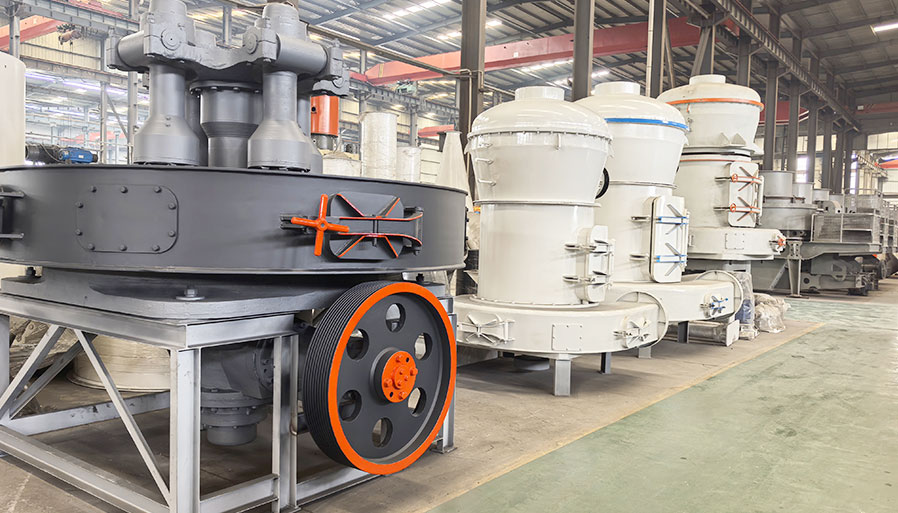

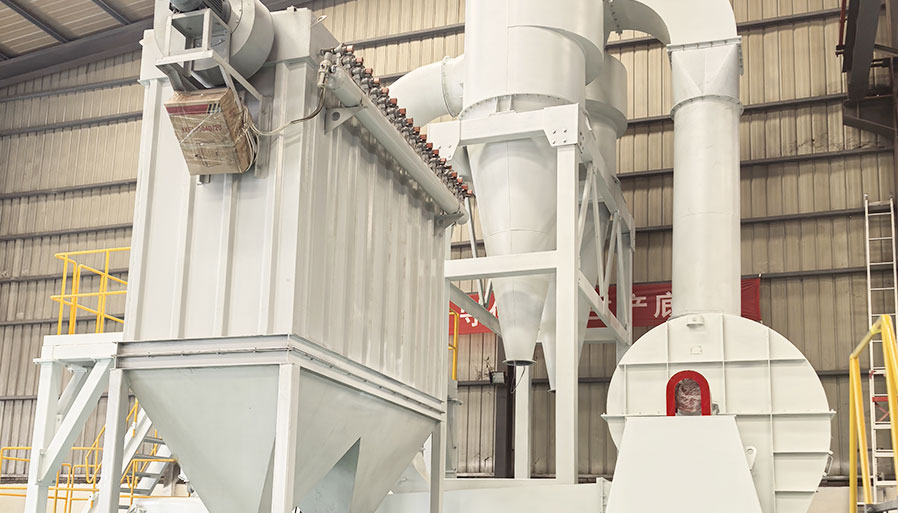

Raymond Mill-Shengbang International Technology (henan) Co., Ltd.

Brief Introduction

High Pressure Raymond Mill is mainly applied to processing Mohs hardness of 9.3 and humidity below 6% below the various non-explosive mineral materials processing, metallurgy, building materials, chemical, mining, high way construction, water conservancy and hydro-power industry has a wide range of applications, is the processing of quartz, K-feldspar, calcite, limestone, talc ceramics, marble, granite, dolomite, bauxite, iron ore, barite, bentonite, coal, activated carbon, coal and other kinds of materials are ideal fineness of materials can be 0.198 mm 0.033 mm (80 mesh -425 mesh)between adjustments. Mill through a special device to produce 0.613 mm(30 mesh)coarse powder.

Application Field

Mining
Metallic minerals
Recycled Aggregates
Architecture

Technical Specification

Model	Grinding Roller			Grinding Ring		Feeding Size(mm)	Output Size (mm)	Capacity (t/h)	Motor Power(kw)	Overall Dimension(mm)


	Numbers(Pcs)	Diameter(mm)	Height(mm)	Outside Diameter(mm)	Height (mm)
	Numbers(Pcs)	Diameter(mm)	Height(mm)	Outside Diameter(mm)	Height (mm)
YGM65	3	210	150	726	150	<15	0.613-0.033	0.3-2.0	28.2	4480x3100x3970
YGM75	3	260	150	865	150	<15	0.613-0.033	0.4-3.1	35.7	5000x4100x4850
YGM85	3	270	140	907	140	<20	0.613-0.033	0.5-4.0	42.7	5150x5000x5200
YGM95	4	310	170	1050	170	<25	0.613-0.033	1.1-5.6	72.5	7550x7400x8100
YGM130	5	410	210	1400	210	<30	0.613-0.033	2.2-9.5	157.5	7900x6980x9645
YGM160	6	440	270	1740	270	<35	0.613-0.033	8-22	275	12550x5645x8355

Product Advantages

01
Self-contained process from raw material to finished powder
02
High capacity.
03
Large conveying capacity.
04
High classification accuracy.
05
Wear-resistant Performance and More Stable Operation.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Limestone Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

200 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
