Roller Crusher-Shengbang International Technology (henan) Co., Ltd.

Description

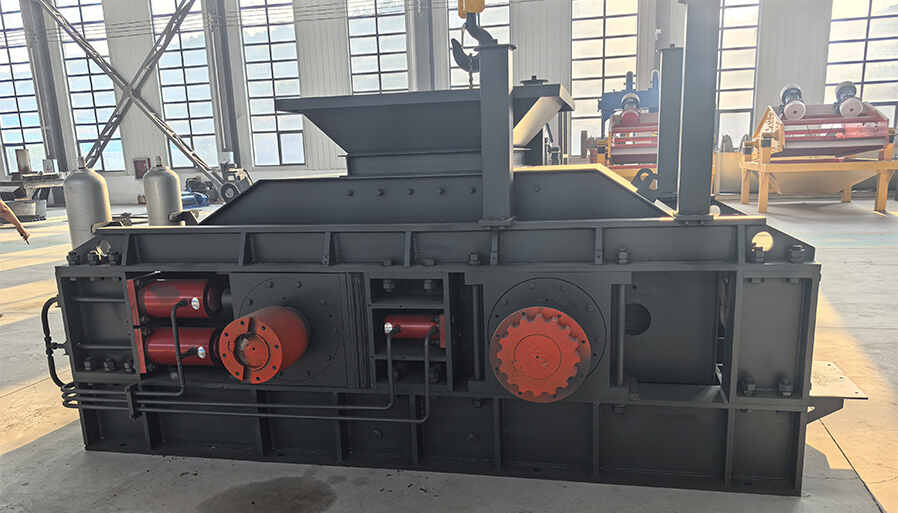

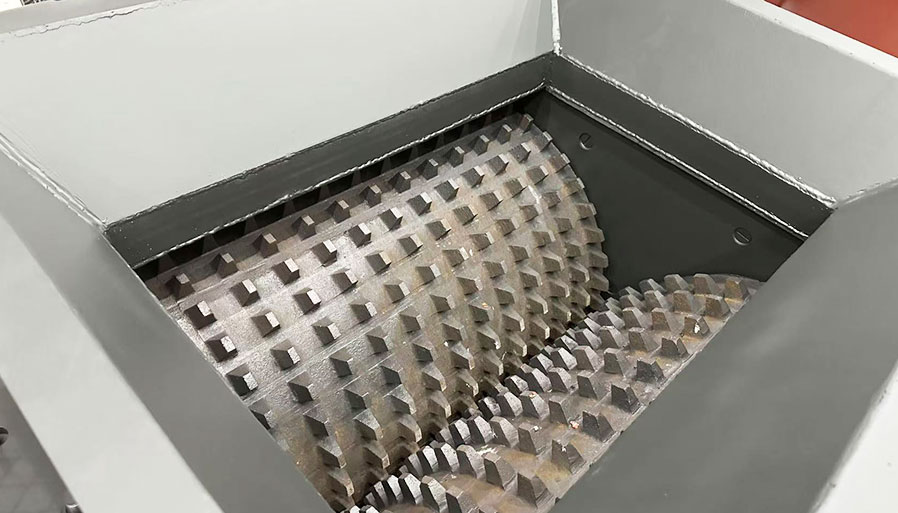

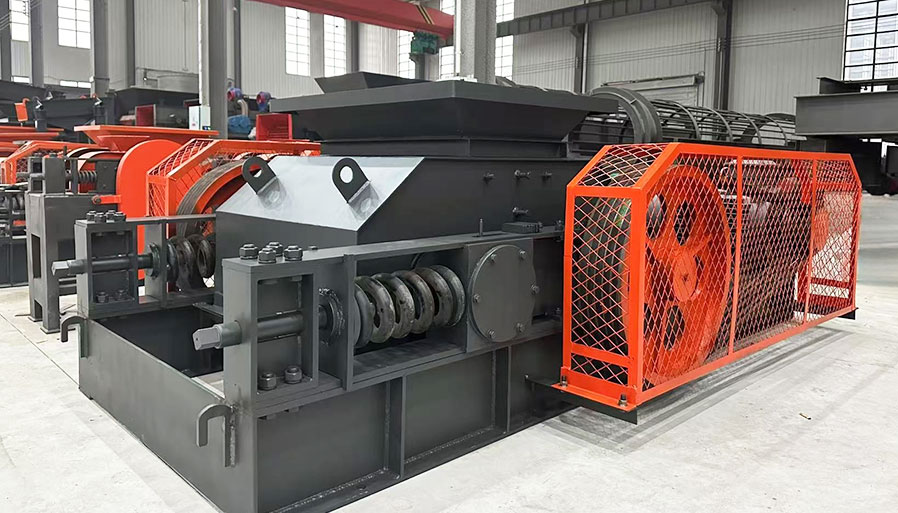

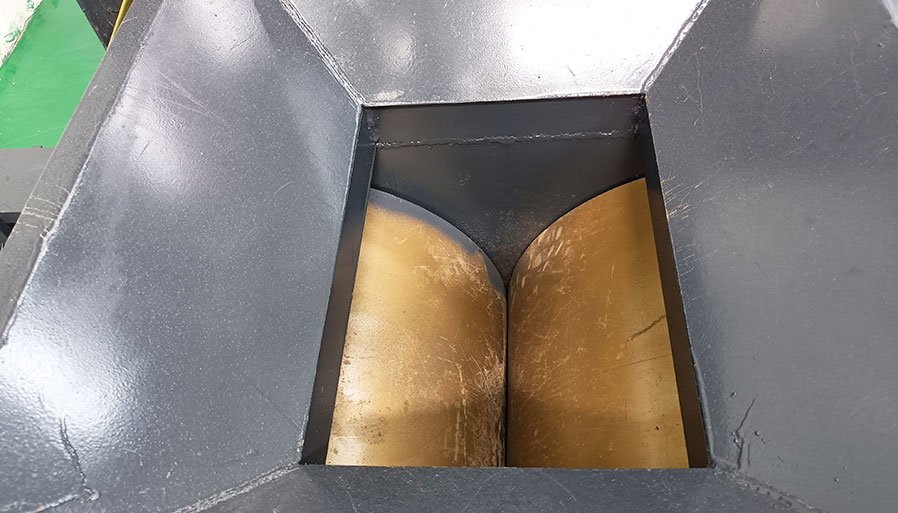

The Roller Crusher is a kind of crusher that uses two sets of rollers to crush materials. It is suitable for medium and fine crushing of materials with compressive strength not more than 160MPa, such as ore, rock, coke, coal, clinker, ceramic raw materials, slag, refractory materials, and chemical materials.

Application Field

Suitable for coarse and fine crushing in cement, chemical, electric power, mining, metallurgy, building materials and other industries.

Technical Parameters

Model	Feeding size (mm)	Output size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Dimensions (mm)
2PG400*250	<35	≦2-8	2-10	5.5×2	1.5	2300950650
2PG400*400	<35	≦2-8	5-10	7.5*2	2.3	23601000810
2PG610*400	<65	≦2-20	5-20	15*2	4	310012501100
2PG750*500	<75	≦2-25	10-40	18.5*2	5.5	385015001350
2PG800*600	<80	≦2-25	20-50	22*2	6.5	240029001350
2PG1000*800	<100	≦3-30	30-60	30*2	9.5	270031001450
2PG1200*800	<120	≦3-35	40-80	45*2	14.5	315036001700
2PG1200*1000	<120	≦3-35	50-90	55*2	16.5	315038001700
2PG1500*800	<130	≦3-45	60-100	110*2	30	380040002100
2PG1500*1000	<150	≦3-50	70-120	132*2	32	380042002100
2PG1600*800	<150	≦3-50	80-140	160*2	38	385041002200

Product Advantages

01
Small size and cheap price
02
Equipped with an adjustable discharging system, it can produce a variety of sizes.
03
Easy to operate.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
