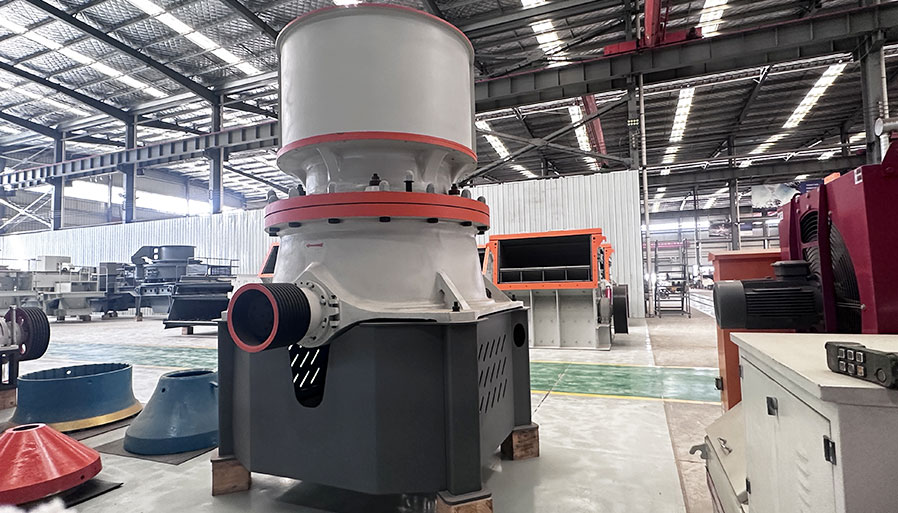

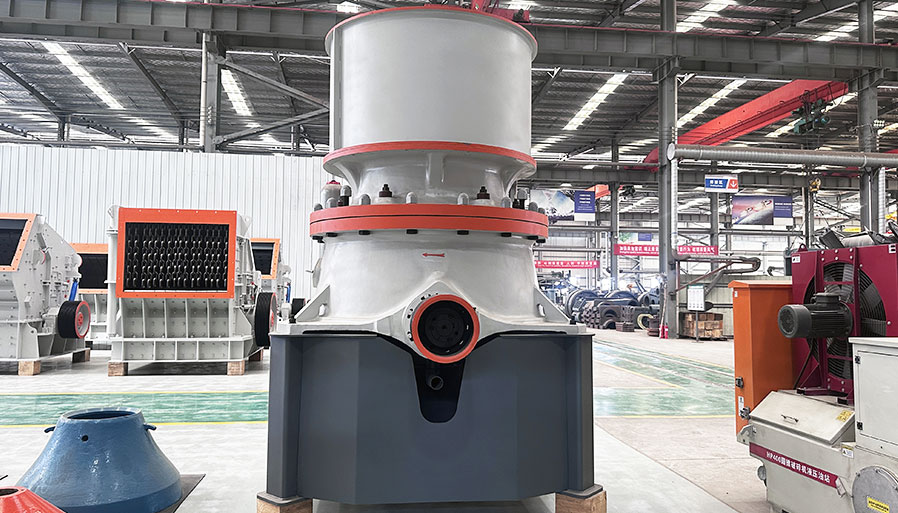

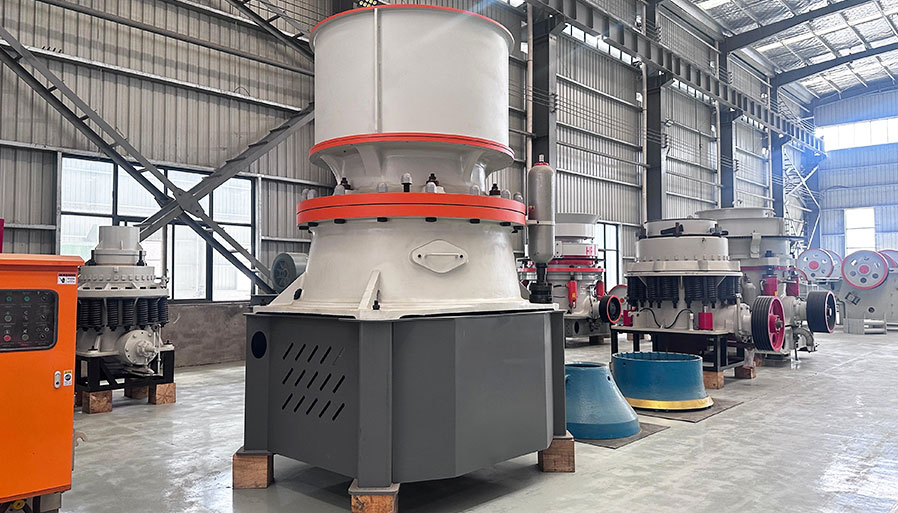

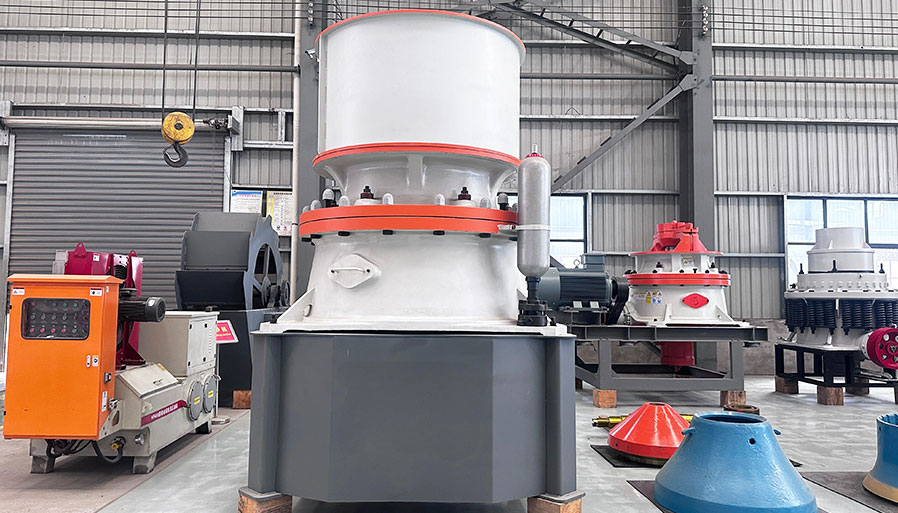

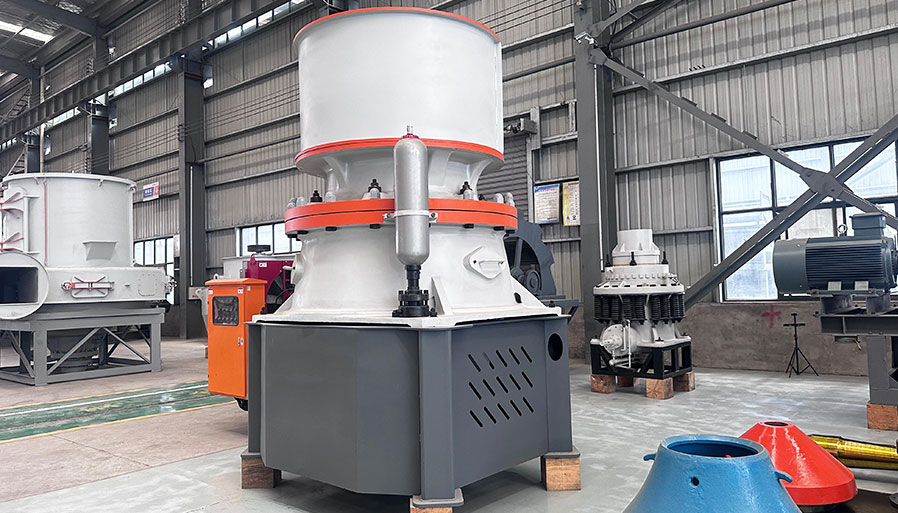

Single Cylinder Hydraulic Cone Crusher-Shengbang International Technology (henan) Co., Ltd.

Description

Single cylinder hydraulic cone crusher achieves higher production efficiency and better product quality by matching the crushing chamber type, eccentricity and motion parameters，can crush all kinds of medium hard or above material, such as iron ore, granite, suitable for medium and fine crushing.

Application Field

Cone crusher is widely applied in mining, metallurgy, construction, chemical industry etc.

Technical Specification

Model	Power(kW)	Cavity Type	Max Feed Size(mm)	6		Throughput(t/h)if Crusher Running at CSS (mm)								44	51
						Throughput(t/h)if Crusher Running at CSS (mm)
					8	10	13	16	19	22	25	32	38
CH820	90	EC	135			55	100	105	115	120	130	145
		C	90			60	75	110	120	125	135	80
		M	65		50	85	90	90	70
		MF	50	40	75	80	80	60
		F	38	34	60	65	55	45
		EF	28				30-40 with 80%less than 4.5-5.5mm
CH830	160			6	8	10	13	16	19	22	25	32	38	44	51
		EC	190				125	170	185	196	210	240	240
		C	145			85	150	165	175	185	200	225	170
		MC	115			65	160	175	185	200	210	165
		M	90		75	100	150	165	175	185	175	120
		MF	75		70	120	130	145	145	130	105
		F	50	50	60	100	110	120	120	110	90
		EF	35				70-90 with 80%less than 5-5.6mm
CH840	250			6	8	10	13	16	19	22	25	32	38	44
		EC	215					200	276	294	313	357	395	384
		C	175				101	218	292	312	332	378	335	229
		MC	140				122	262	282	301	320	328	242
		M	110				187	278	298	318	339	281	194
		MF	85			114	127	245	263	281	299	248
		F	70		135	176	191	206	221	236	251	208
		EF	38				100-125 with 80%less than 6-7.5mm
CH860	315			6	8	10	13	16	19	22	25	32	38	44	51
		EC	275					177	338	436	464	547	605	662	511
		C	215					190	367	480	501	582	643	512	353
		MC	175					253	426	455	484	552	499	364
		M	135					295	440	470	500	502	403
		MF	115				192	369	369	423	450	451	363
		F	85				304	328	352	376	400	410	323
		EF	65				293	316	298	290
CH870	500			13	16	19	22	25	32	38	44	51	57	64	70
		EC	300				588	849	968	1070	1172	1291	1393	1512	1331
		C	240			406	636	893	1018	1125	1232	1357	1464	1461	1286
		MC	195			440	723	837	954	1055	1155	1272	1373	1370	1206
		M	155			563	786	836	953	1054	1154	1271	1372	1248	1098
		MF	100		424	716	765	814	928	942	789	702
		F	90	395	656	704	752	800	912	857	718
		EF	80	517	558	595	639	680	639	503	669
CH880	750			13	16	19	22	25	32	38	44	51	57	64	70
		EC	370					459	1309	1446	1584	1745	1883	2043	2181
		C	330				397	774	1404	1552	1700	1873	2020	2193	2140
		MC	300			513	852	1232	1404	1552	1700	1873	2020	2005	1739
		M	230		312	670	951	1106	1261	1394	1526	1681	1814	1800	1564
		MF	160	204	514	690	921	980	1117	1235	1352	1490	1607	1396	1170
		F	120	289	669	838	895	952	1085	1165	1051	827	625

Product Advantages

01
Even final product particle size.
02
Strong crushing capacity.
03
Continuous and stable operation.
04
High capacity.
05
Makes replacement of mantle and concave quicker and easier.
06
High-efficiency rotating feeding device makes the liner abrade evenly.
07
Automatic overload protection in case iron material drops into the cavity.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

Related Products

Wheel Series Mobile Crusher Plant

Mobile Crusher Station is mainly used in metallurgy, chemistry, building materials, hydro power etc., often be moved material processing in particular used in freeway, railway, hydro power engineering etc.

PE/PEX Series Jaw Crusher

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA.

6CX Series European Type Jaw Crusher

6CX series Jaw Crusher has adopted world' s most advanced crushing technology and research achievement. lt is the new crushers with the world' s advanced level.

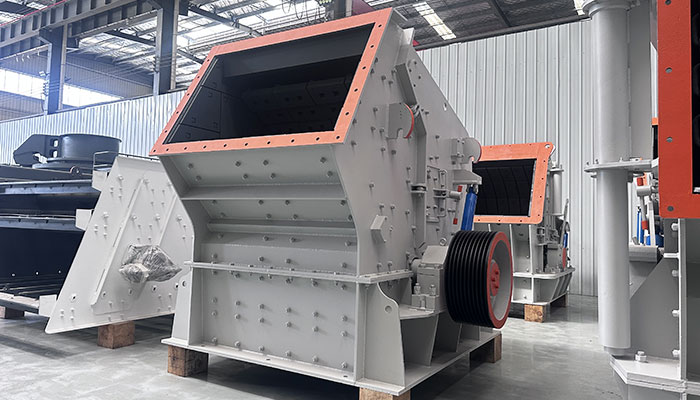

PF/PFV Series Impact Crusher
