Spire Chute-Shengbang International Technology (henan) Co., Ltd.

Description

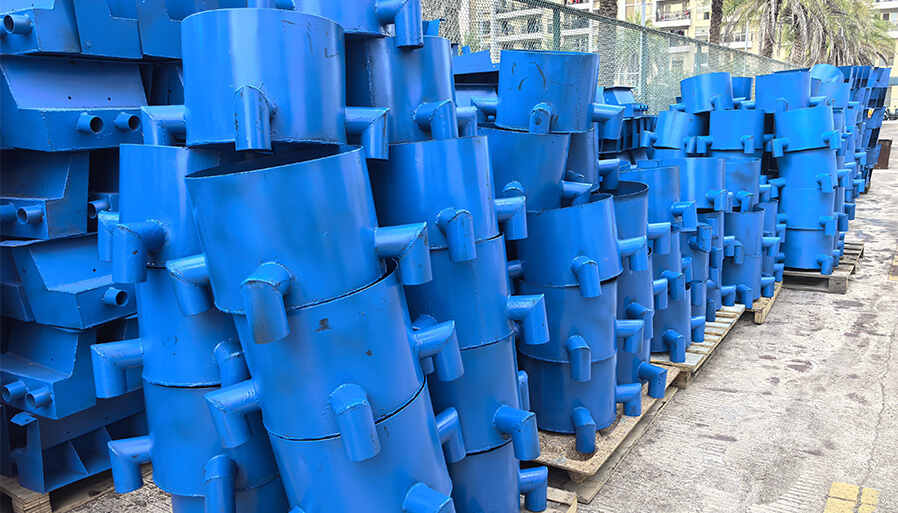

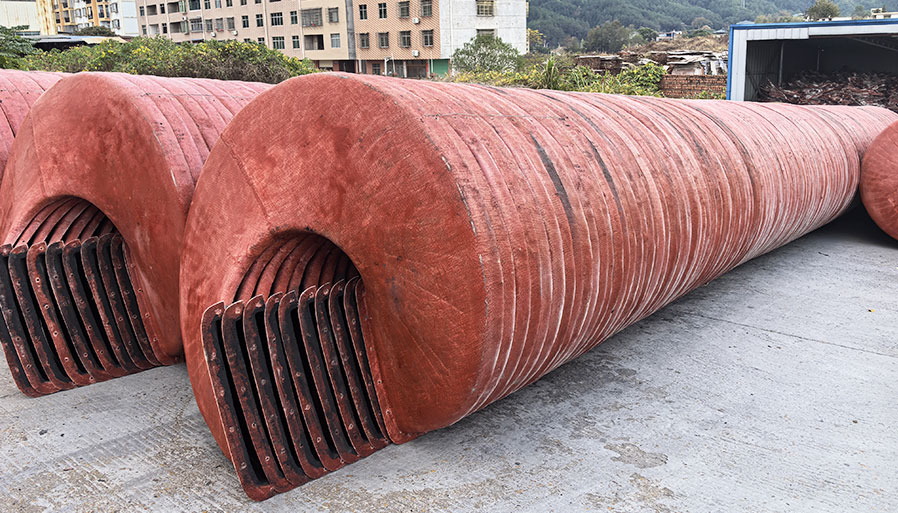

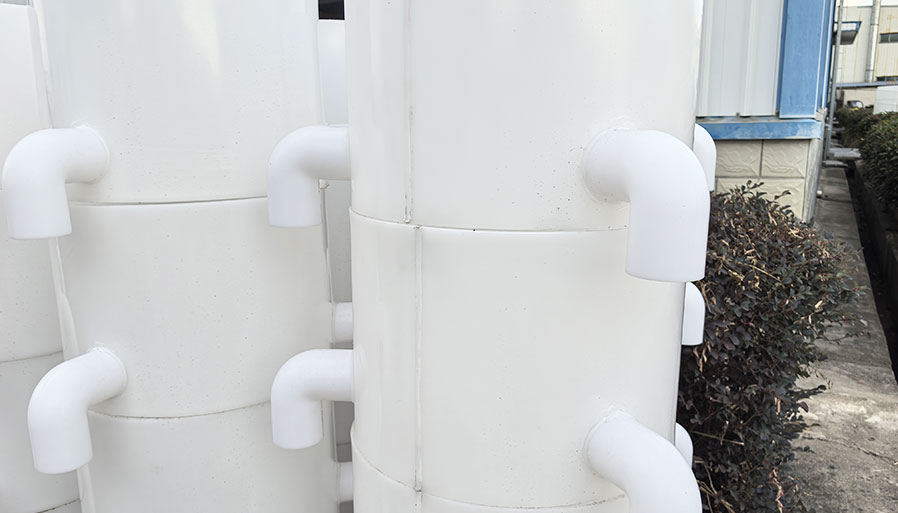

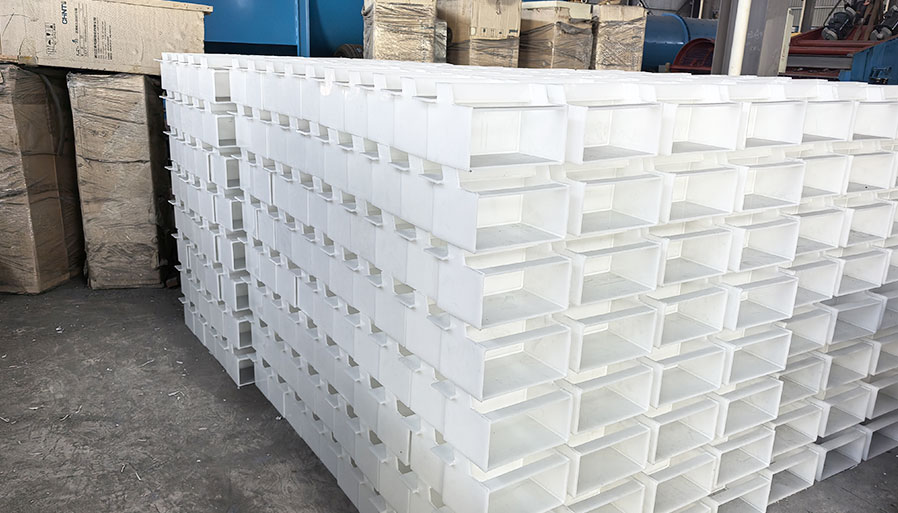

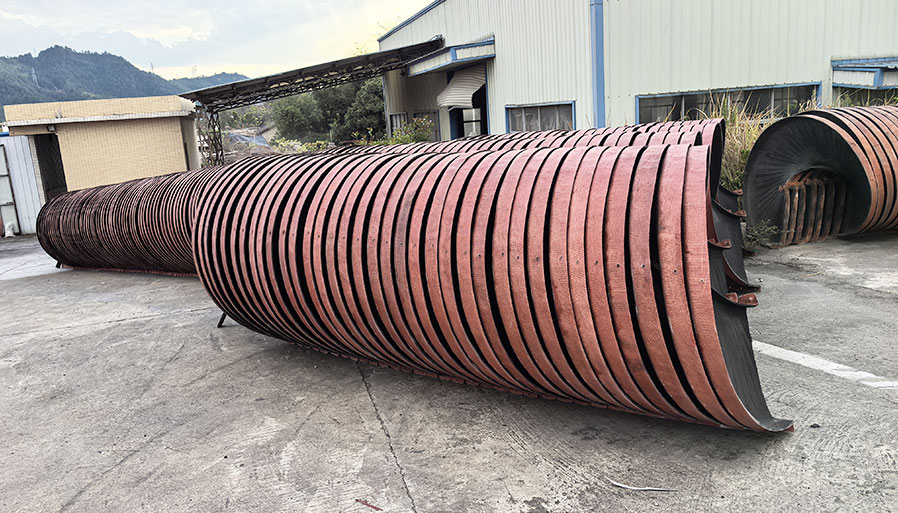

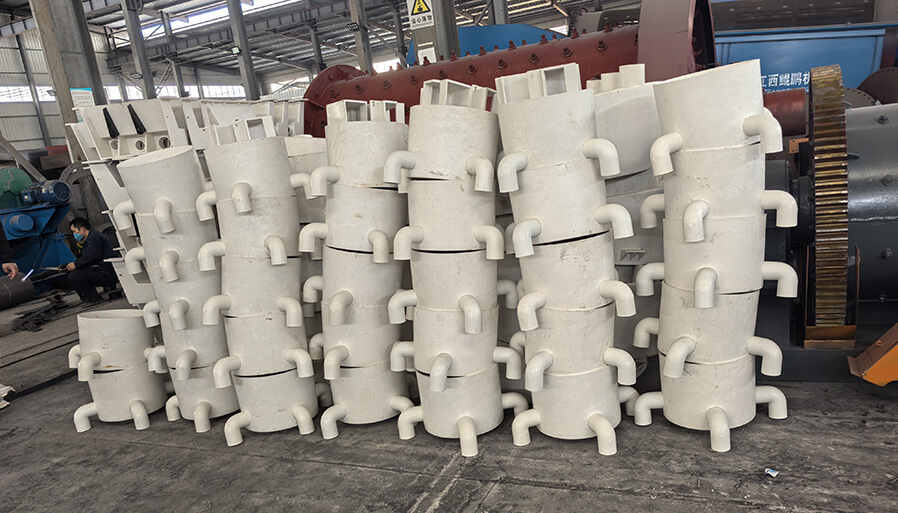

Spiral chute is a kind of ore separation equipment based on the principle of gravity separation, mainly used to process fine-grained minerals such as iron, tin, tungsten, tantalum, niobium, gold, etc.

Application Field

The equipment is suitable for mining, beneficiation, and separation of fine materials with a particle size of 0.3-0.02MM, such as iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphite, tungsten ore, tin ore, tantalum ore, niobium ore, and other non-ferrous metals, rare metals, and non-metallic mineral bodies with different specific gravities.

Technical Parameters

Model	Outside Diameter (MM)	Inside Diameter(MM)	Pitch of screw(MM)	Rate(%)	Gradient (°)	Number of Spiral Heads	Number of turns	Feed-in Size(MM)	Feed Concentration	Capacity (t/h)	Area (m³)	Weight（KG）
LX2000	2000	2000	1200	0.6	9	2-4	3.5	0.04-4	20-40	15-45	7	2000
LX1500	1500	1500	900	0.6	9	2-4	4	0.03-0.3	20-45	10-25	5	1100
LX1200	1200	1200	720540	0.6	9	2-4	4-5	0.03-0.3	30-50	4-6	2	600
LX900	900	900	540360	0.4	9	2-3	4-5	0.03-0.3	30-50	2-3	1.2	400
LX600	600	600	390360	0.4	9	1-2	4-5	0.02-0.2	30-50	0.8-1.2	0.5	150
LX400	400	400	180	0.45	9	1-2	4-5	0.02-0.2	30-50	0.5-0.2	0.25	50

Product Advantages

01
The separation process is stable and easy to control.
02
The feed concentration allows a wide range of changes.
03
High enrichment ratio and high recovery rate.
04
Small footprint and water consumption.
05
Simple structure, no power required.
06
Large processing capacity, simple installation, and easy operation.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

200 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

Related Products

Belt Conveyor

This machine is used for transferring bulk or packaged materials, it is widely used in the industry of mining, building materials, metallurgy, coal and so on, According to various transferring requirements, the transferring system can be single or multiple conveyors or combined with other equipment to make up slope or horizontal transfer system to meet the need of different working conditions,

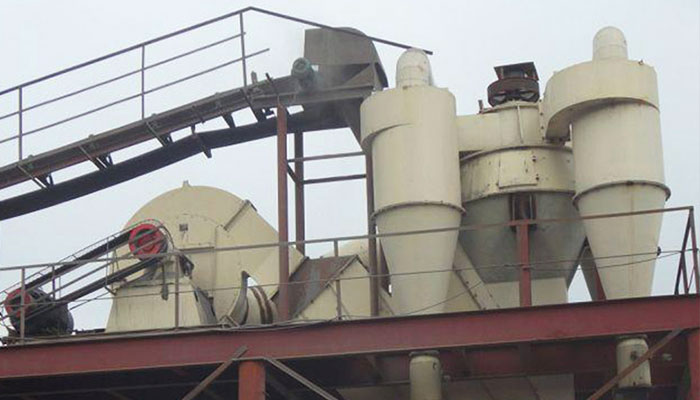

Superfine Rotor Classifier
