Superfine Rotor Classifier-Shengbang International Technology (henan) Co., Ltd.

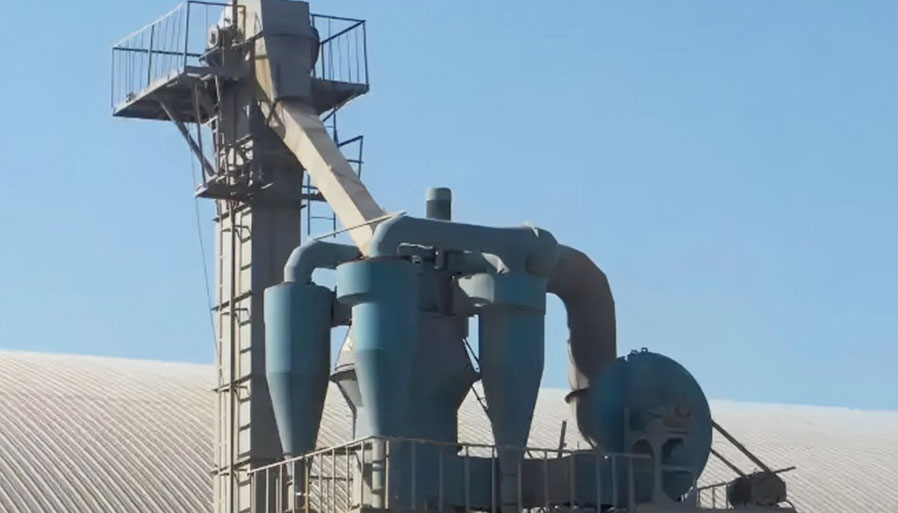

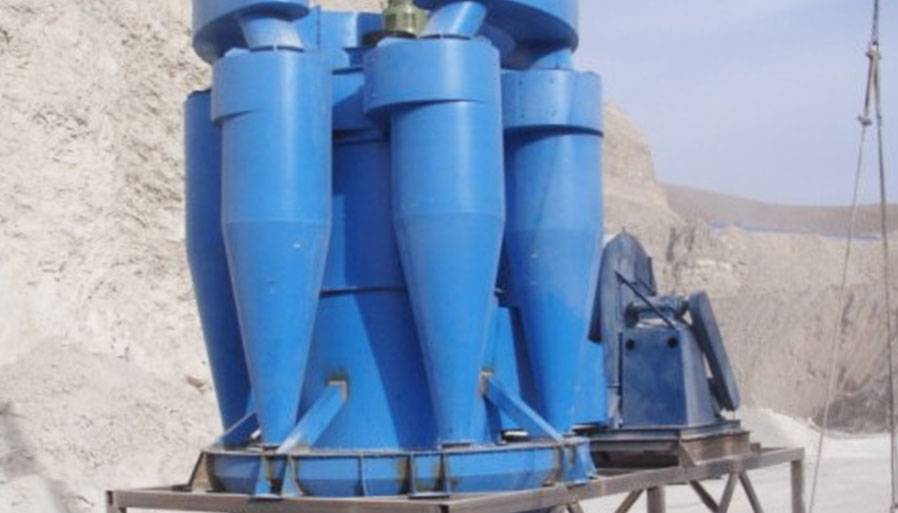

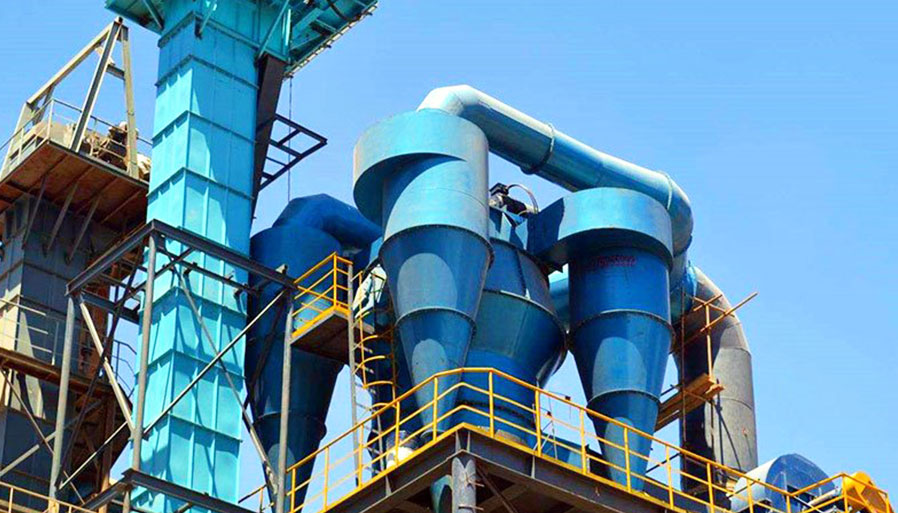

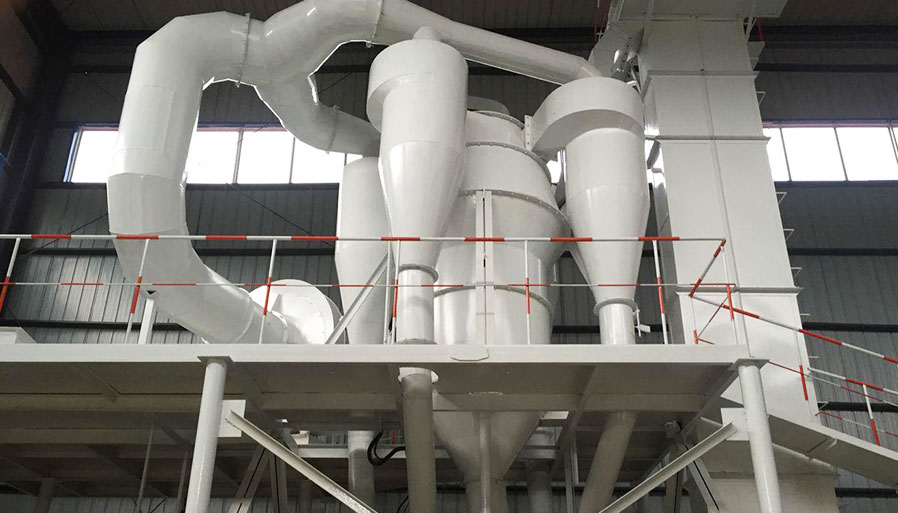

Description

Superfine rotor classifier is a new type of grading equipment developed to overcome the defects of centrifugal and cyclone powder classifiers such as uneven material spreading and uneven grading flow field. Based on the rotor powder classifier, the plane eddy current theory is applied to the design of the cyclone powder classifier, and the improved powder classifier with external circulation rotor is designed. The fineness adjustment is flexible and convenient, and the performance is reliable.

Application Field

It is widely used in coal mills, raw material intermediate unloading drying mills and cement mill systems in new dry process cement production lines.

Technical Parameters

Name		Unit	KX500	KX600	KX700	KX800	KX900	KX1000
Output	Cement	t/h	16-22	20-26	26-35	43-54	64-76	85-105
	Raw material	t/h	19-28	28-35	33-45	52-65	75-95	110-130
	Manufactured-sand	t/h	40-50	50-60	60-70	70-100	100-120	120-150
Spindle motor	Model		Y132M-4	Y160M-4	Y160L-4	Y180L-4	Y225S-4	Y255M-4
	Rotation rate	r/min		125-1250			132-1320
	Power	kw	7.5	11	15	22	37	45
Fan	Model		SCF-12 NO.8C	SCF-12 NO.10C	SCF-12 NO.10C	SCF-12 NO.12.5C	SCF-12 NO.16B	SCF-12 NO.16D
	Blowing rate	m³/h	30900	41240	56400	71839	98918	142600
	Wind pressure	Kpa	2.43	2.14	2.18	2.2	2.23	2.4
	Rotation rate	r/min	1600	1200	1320	1010	880	960
	Model model		Y200L-4	Y225S-4	Y250M-4	Y280S-4	Y315M1-6	Y355M2-6
	Power	kw	30	37	55	75	90	110
Fitness(80μm）	Cement	%	2-4
	Cement	%	2-4
	Raw material	%	8-10
Spindle speed		r/min	190-380	150-350	150-350	150-350	140-350	120-300
Equipment load		t	10.5	14.5	16.2	22.4	28.3	41.2

Product Advantages

01
The material is dispersed outside the classification area. Due to the effects of the dispersion plate, the intermediate connecting air duct and the guide vane, it has both static inertial classification and dynamic classification functions, and the material dispersion is high and evenly distributed.
02
The classification area of the superfine rotor classifier is narrow and long, the air flow field is balanced and stable, the classification performance is good, and the classification efficiency is high.
03
The superfine rotor classifier has a large processing capacity, and with the same processing capacity as other powder classifiers, the volume can be made smaller.
