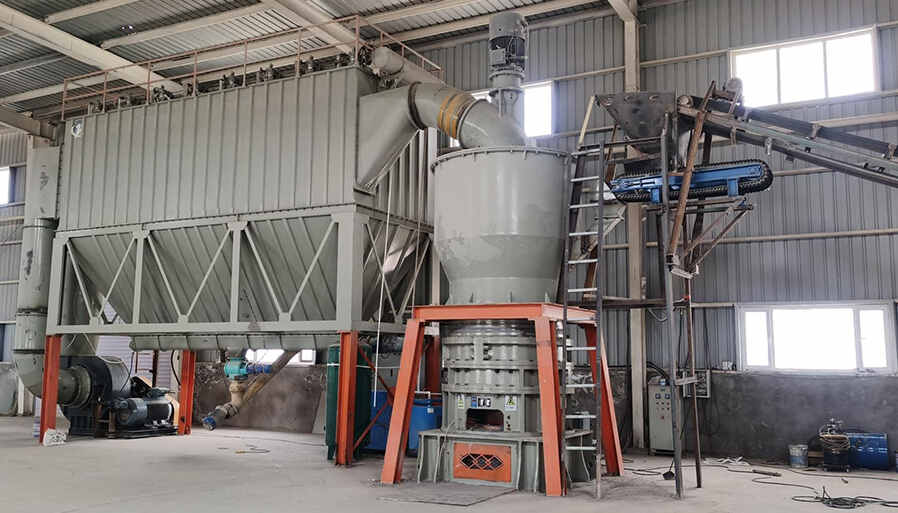

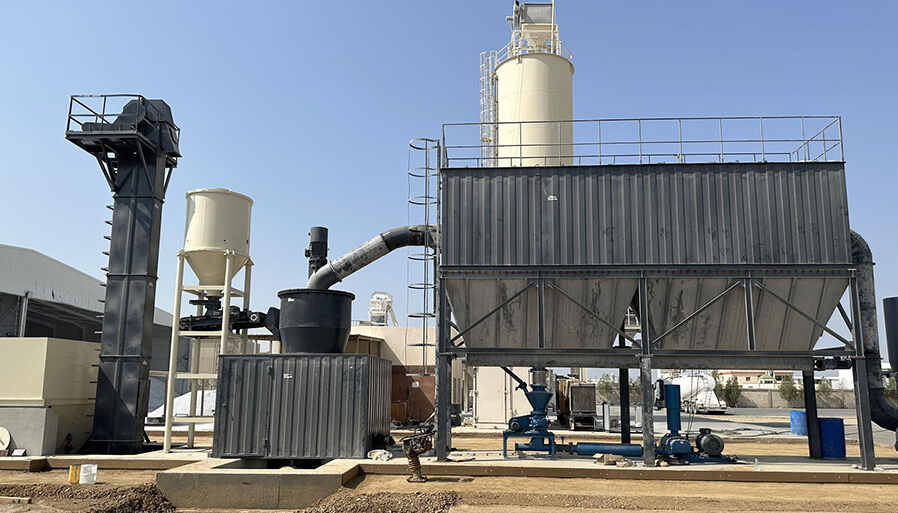

Three-Ring Micro-Powder Grinding Mill-Shengbang International Technology (henan) Co., Ltd.

Description

Micro powder mill is specially designed for producing fine powder and ultrafine powder for non-flammable, explosive and brittle materials with Mohs hardness below 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate rock, potash rock, pumice and more than 100 kinds of materials.

Application Field

Widely used in mining industry, building materials industry, chemical industry, metallurgical industry, environmental protection industry, ceramic industry, food industry, pharmaceutical industry, and agricultural industry.

Technical Parameters

Model	M60	M80	M100	M125
Ring Diameter (mm)	600	800	1000	1250
Ring Number (layer)	3	3	4	4
Roller Number(piece)	15	21	28	34
Main Shaft Speed (r.p.m)	250-280	230-240	180-200	135-155
nput Size (mm)	≤20	≤20	≤20	≤20
Finished Size(μm/mesh)	5-74 (200-2500)	5-74 (200-2500)	5-74 (200-2500)	5-74 (200-2500)
Capacity (t/h)	0.2-3	0.5-4.5	0.7-7	1.5-12
Overall Dimension (L×W×H,m)	11.5×3.5×5.2	15.9×4.2×6.1	19.7×4.7×7.7	23.2×4.7×7.7
Motor Powder (KW)	101	143	244	401

Product Advantages

01
High efficiency and energy saving, saving 30%-50% energy compared with traditional equipment.
02
High fineness, the finished product particle size can be adjusted between 325-2500 meshes to meet different fineness requirements, suitable for high-precision material processing.
03
Reasonable structural design, stable operation, low vibration, low noise, and long equipment life.
04
Environmental protection, equipped with high-efficiency dust removal equipment, dust emissions meet environmental protection standards, and reduce environmental pollution.
05
High degree of automation, equipped with automatic control system, easy operation, reduce manual intervention, and improve production efficiency.
06
Convenient maintenance, modular design, convenient replacement of wearing parts, low maintenance cost, and short downtime.
07
Strong adaptability, suitable for a variety of materials, such as limestone, calcite, barite, etc., with a wide range of applications.
08
Small footprint and compact structure.

PRODUCT CASES

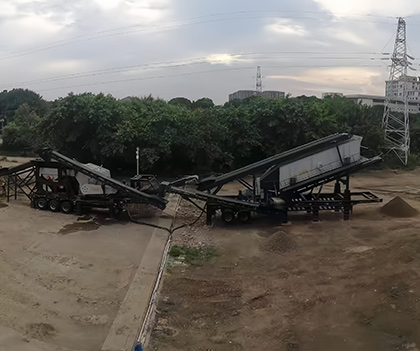

80 TPH Granite Crushing Production Line
