Brief introduction

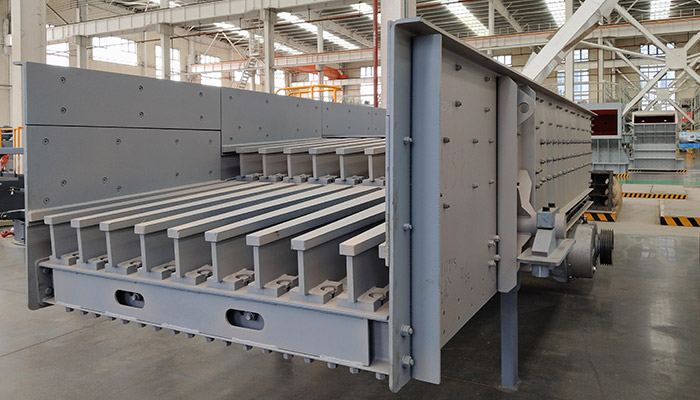

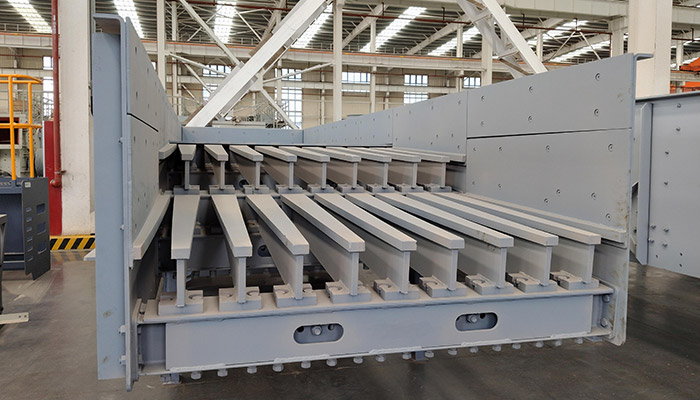

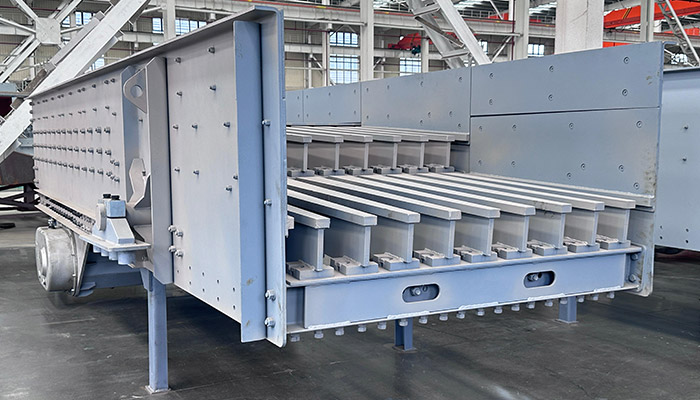

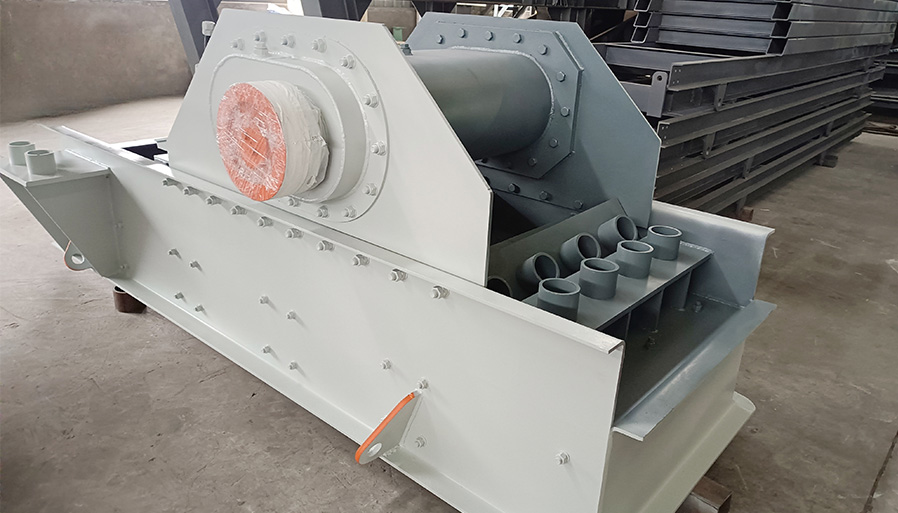

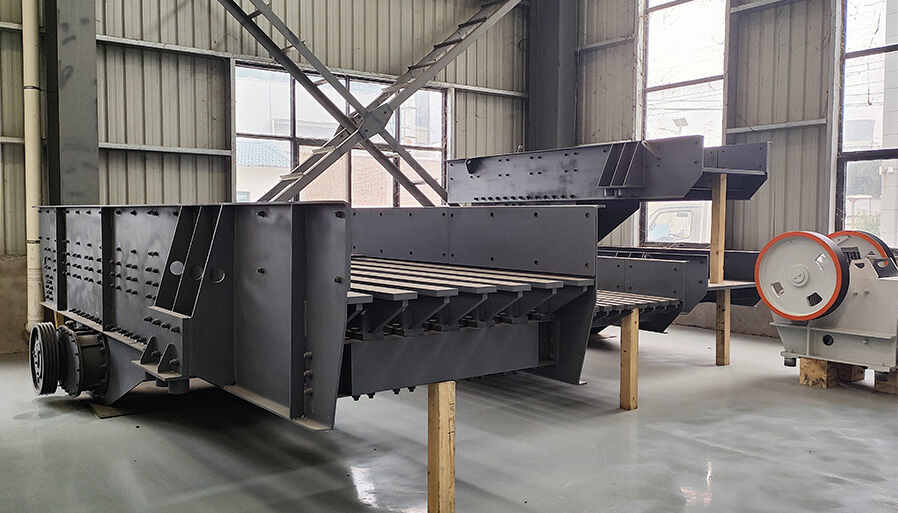

During production flow, the SBKT Vibrating Feeder makes the granule, block of raw material from hopper delivery to various sets evenly, timely and continuously. in a sand-stone production line, the machine can continuously convey the materials to crushers and coarsely screen the materials. It is widely applied to the crushing-screening combination equipment in industries of metallurgy, coal mine, benefaction building materials, chemical engineering, grinding materials etc.

Application Field

Mining
Metallic minerals
Recycled Aggregates
Architecture

Technical Specification

Model	Specifi cation(mm)	Max.Feeding Size(mm)	Speed(rpm)	Capacity(t/h)	Power	Weight(kg)
ZSW3090	300x9000	400	600~850	90-180	11	3450
ZSW3896	960x3800	500	600~850	120-210	15	4450
ZSW4211	1100 x4200	650	600~850	180-400	15	4750
ZSW4911	1134x4960	650	600~850	250-480	22	5350
ZSW4913	1288x4960	750	600~850	340-600	22	6350
ZSW6013	1288x6000	750	600~850	340-600	30	6800
ZSW6015	1524x6000	1000	600~850	400-800	37	7050
ZSW6018	1804x6000	1000	600~850	450-900	37	8669

PRODUCT ADVANTAGES

01
Stable vibration, reliable operation and long service life.
02
Low noise, low power consumption, and good regulation performance;
03
Simple structure and reliable operation;
04
Easy to install and adjust, lightweight, small in size, and easy to maintain.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

300 TPH Basalt Crushing Sand Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.
