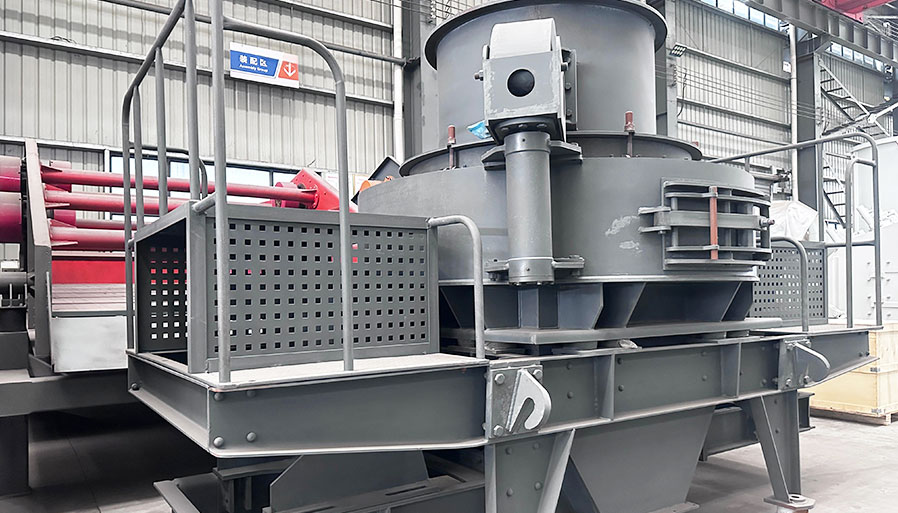

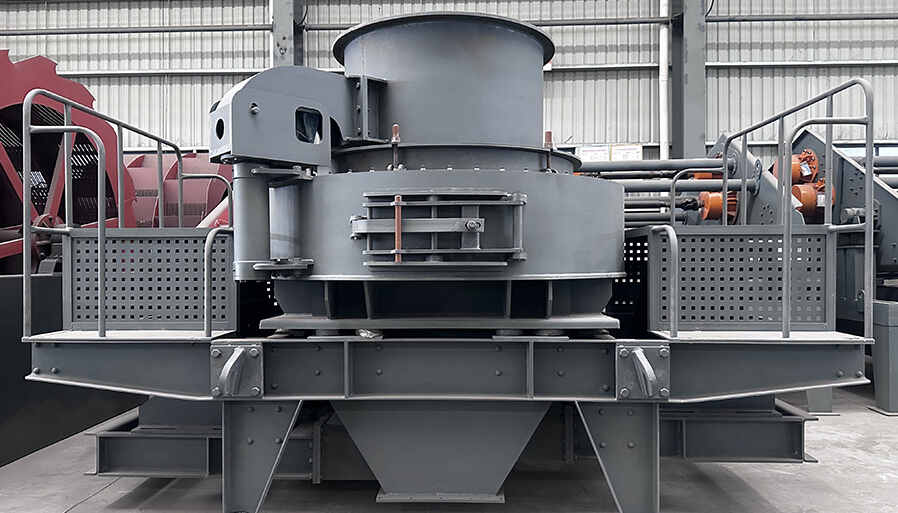

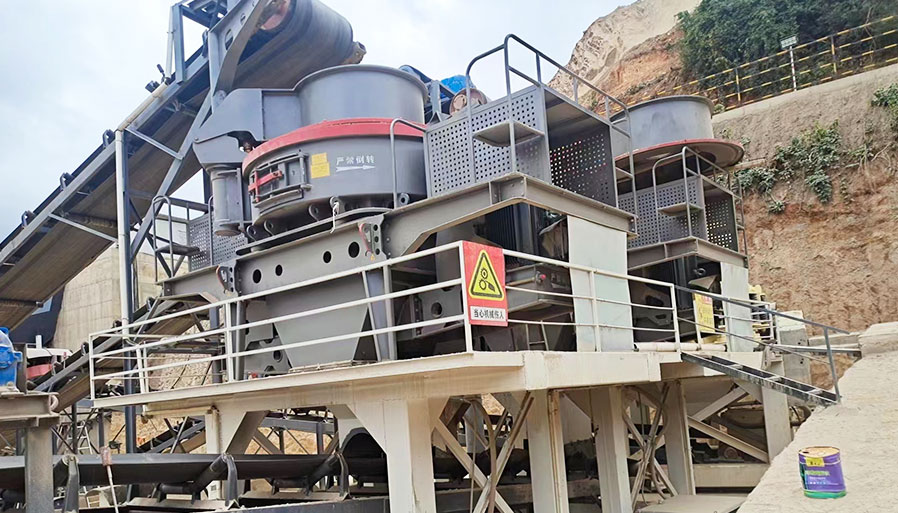

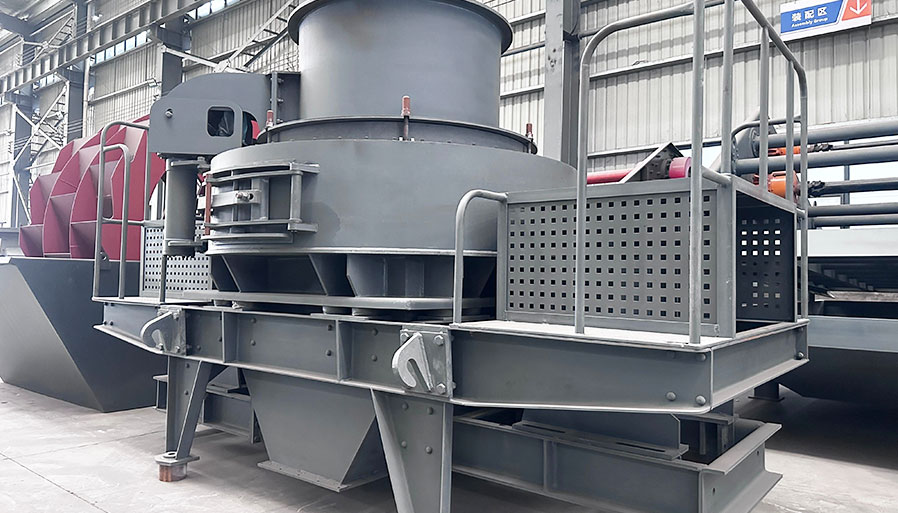

VSI Series Vertical Shaft Impact Crusher-Shengbang International Technology (henan) Co., Ltd.

Description

The VSI series impact crusher uses a high-speed closed impeller to accelerate the material. It can be configured to hit the material with stone or stone, and can adjust the central feed and waterfall feed according to the user’s situation to meet different process requirements such as fine and ultra-fine crushing, machine-made sand processing and stone shaping.

Application Field

It provides the high quality sand or aggregate to the highway, high-speed rail, construction, municipal administration construction, water and electricity dam construction. It is the first choice in sand making and stone shaping fields.

Technical Parameters

Model

Capacity(t/h)

The max feeding
size(mm)

Speed
(r/min)

Double
Motor
Power
(KW)

Overall
dimension
(L*W*H)
(mm)

Weight
(t)

Lubrication station

Double oil
pump motor
power

(kW)

Security

Overall
dimension
(LXWXH)

Tank
heater
power
(kW)

Surrounding
feed and
center feed

Full center
feed

Soft
stone

Hard
stone

VSI7611

120-180

60-90

≤35

≤30

1700-
1930

2X55

4100x2250
x2315

8.5

2X0.55

Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure; air cooling system /water cooling system available; preheating-start engine adopted.

1200X790X
1120

2

VSI8518

200-260

100-130

≤40

≤35

1520-
1690

2X90

4160x2300
x2476

10

VSI9526

300-380

150-190

≤45

≤40

1360-
1510

2X132

4540x2500
x2911

13

VSI1140

450-520

225-260

≤50

≤45

1180-
1300

2X200

5000x2716
x3117

16

VSI1145

500-640

250-360

≤50

≤45

1200-
1390

2X220

5450x2900
x3300

18

VSI1250

320-490

260-350

≤50

≤45

1040-
1220

2X280

6200x2830
x3820

21

VSI1263

545-583

454-486

≤60

≤50

900-
1150

2X315

5700x2980
x3530

23

Product Advantages

01
Multi-stage impact crushing, good product particle shape.
02

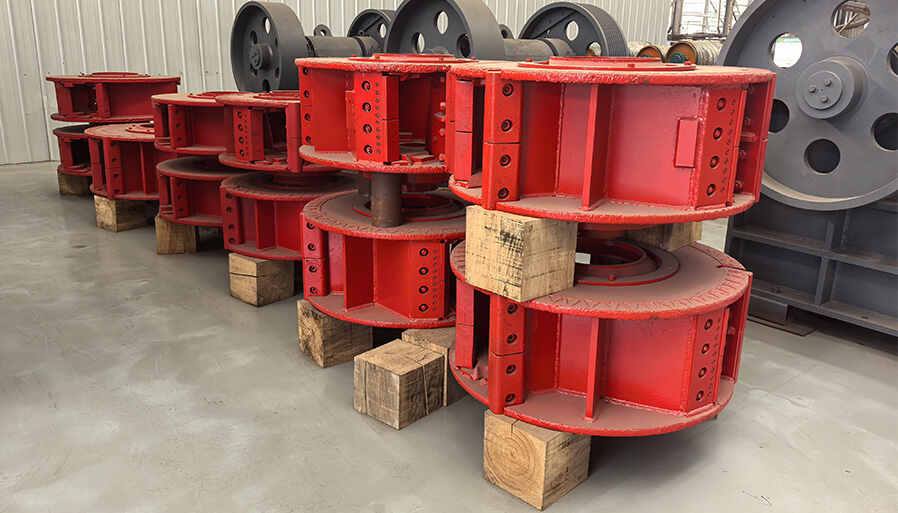

Combined rotor design, easy maintenance.
03
Supporting system design, more reliable operation.
04
Multiple working modes, one machine for multiple uses.

PRODUCT CASES

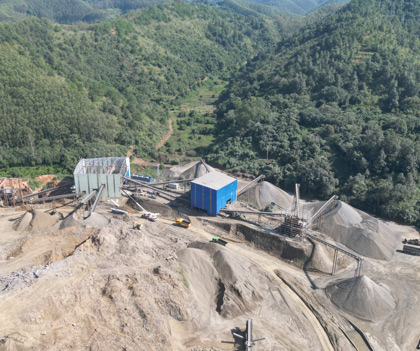

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

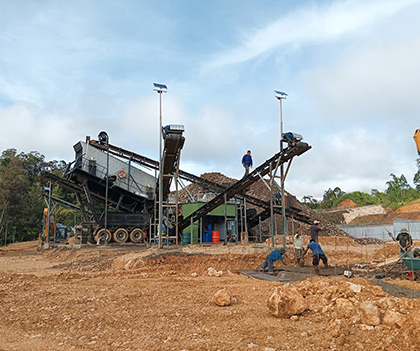

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

100 TPH River Pebbles Crushing Production Line

The production line is reasonably designed and has strong processing capacity, which is suitable for large-scale granite crushing operations. The equipment is highly efficient, has a large crushing ratio, and the finished product has a uniform particle size, which can meet high-standard production needs.

Related Products

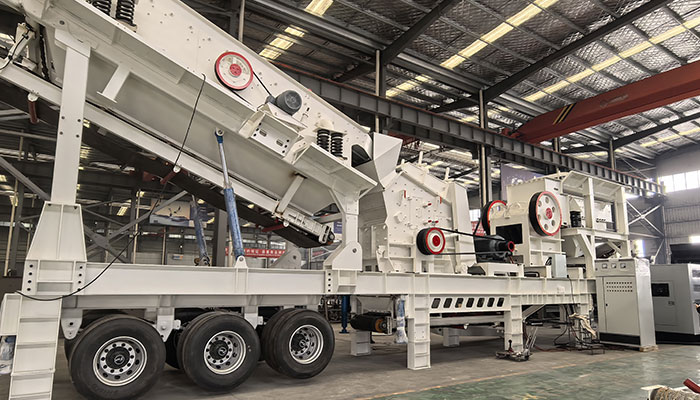

Wheel Series Mobile Crusher Plant

Mobile Crusher Station is mainly used in metallurgy, chemistry, building materials, hydro power etc., often be moved material processing in particular used in freeway, railway, hydro power engineering etc.

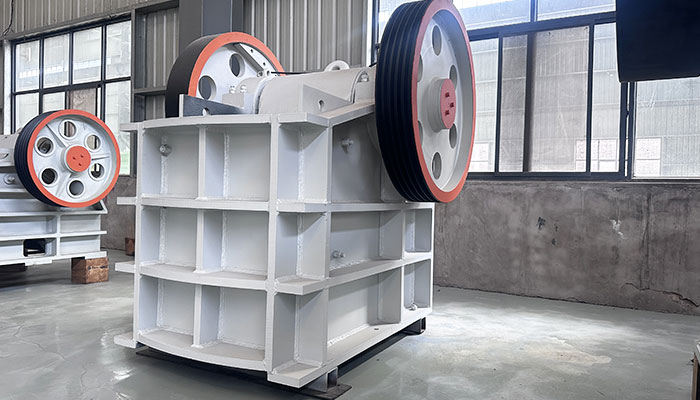

PE/PEX Series Jaw Crusher

Jaw Crusher is ideally suitable for primary and secondary crushing for material with compression strength less than 320MPA.

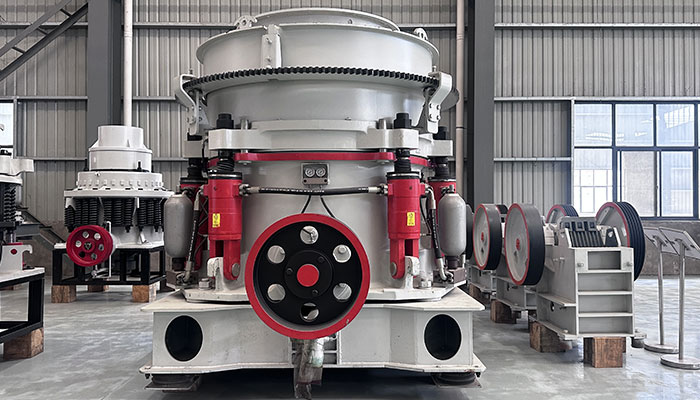

Multi-Cylinder Hydraulic Cone Crusher

HP hydraulic cone crusher uses the principle that the movable cone of the crusher swings under the action of the eccentric sleeve, so that the material is squeezed and rolled between the crushing wall and the concave surface.

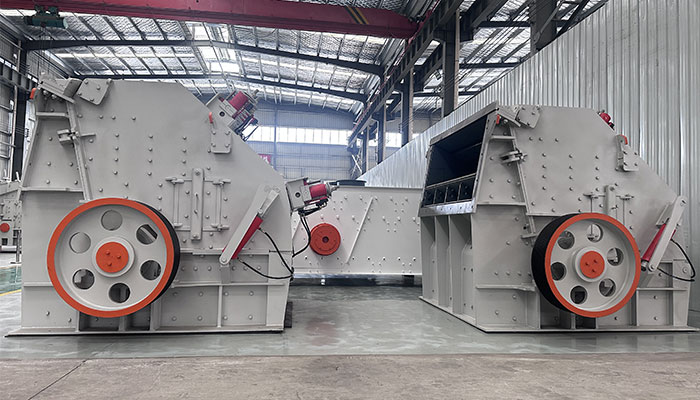

CI6X Series Impact Crusher

CI6X series impact crushers are famous for their high crushing ratio. They can be customized with 2 or 3 chambers according to customer requirements.

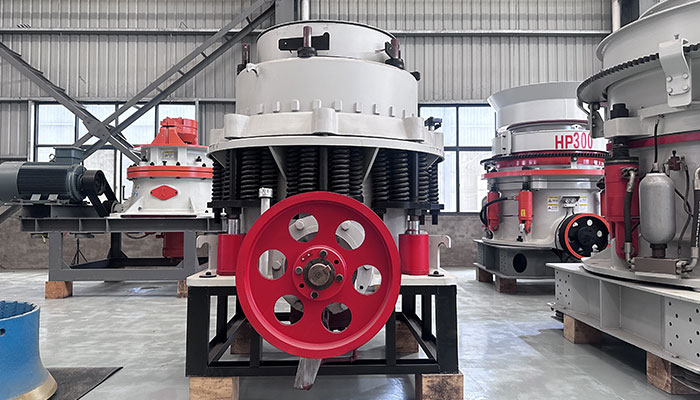

CSV Series Symons Cone Crusher
